Vulcan Hart 00-719241 Oven Air Shutter 2 Slots .463" Orifice Hole
Special Price ÂŁ8.72 Regular Price ÂŁ9.33
In stock
SKU
00-719241

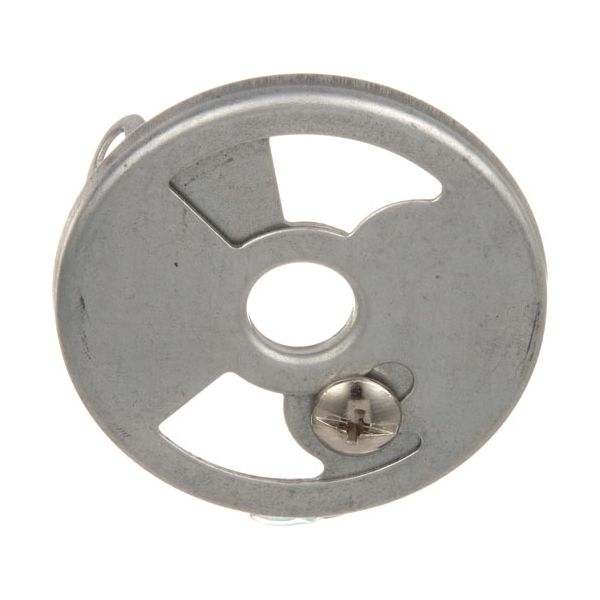

The Vulcan Hart 00-719241 Oven Air Shutter with two slots and the orifice hole being 0.463 inches is a control component utilized in commercial oven assemblies. It controls the quantity of air that is mixed with the fuel before combustion, and this aids in attaining a stable and efficient flame. It is mounted at the inlet of the burner to be adjusted to fit operating conditions and supply. This is vital in terms of better combustion operation, heat stability, and running of that are applied in professional kitchens.
Manufacturer:
Dimensions
- Length: 2.047 cm
- Width: 2.047 cm
- Height: 0.315 cm
- Weight: 0.066 kg
Product Notes
- Air Shutter, Twin Plate, 2 Slots, .463" Orifice Hole, Fits
- 2.092" Dia Burner, W/ Locking Ears, 2-1/4"Od Air Shutter
- For Cast Iron Burner.
- Magikitch'N Charbroiler Series Dmc, Fm-Smb, Smb, Smb-Apm
- Montague Broiler Ufc, Ufsc, Ufscc, Ufsmc (24 To 72, >10/91
- Grill 2436, 2436T, 2472, 2472T, Grizzly G.
- Range 136-5, 136-559~
- Series:
- Vulcan
- Broiler Hcb1 (Old Cb-1L), Hcb2 (Old Cb-2L), Hcb44
- (Old7844L), Hcbo40 (Old 7840Al), M7806, M7809, Series: Hgb.
- Range 7830.
- Wolf Oven
