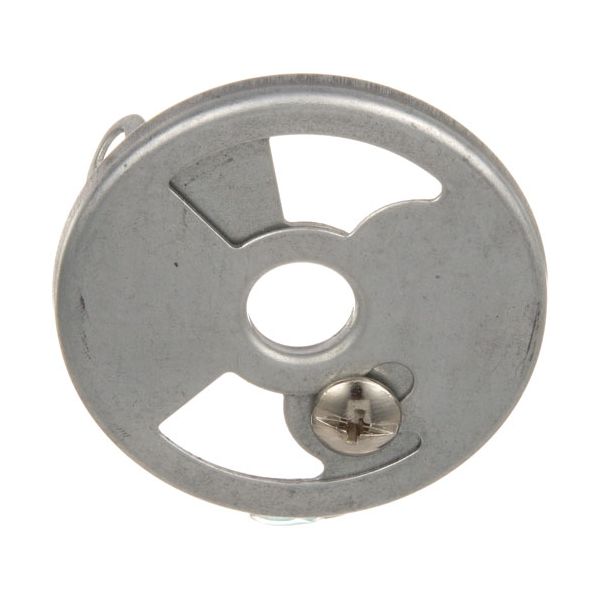

Comstock Castle 16000 Burner Twin Plate Air Shutter 2 Slots .463" Orifice Hole
£7.08
In stock
SKU
16000
Comstock Castle 16000 Burner Twin Plate Air Shutter is a gas system component that is used to regulate and adjust the amount of primary air entering the burner. It has a twin plate design with two adjustment slots and a 0.463-inch orifice hole to allow proper air-to-gas mixing. This component is fitted into commercial gas cooking machines that utilize the system assembly. Its role in the burner system is to stabilise the flame properties, assist in the uniform combustion and aid in the controlled heat production during normal operation.
Manufacturer:
Dimensions
- Length: 2.047 cm
- Width: 2.047 cm
- Height: 0.315 cm
- Weight: 0.066 kg
Product Notes
- Air Shutter, Twin Plate, 2 Slots, .463" Orifice Hole, Fits
- 2.092" Dia Burner, W/ Locking Ears, 2-1/4"Od Air Shutter
- For Cast Iron Burner.
- Magikitch'N Charbroiler Series Dmc, Fm-Smb, Smb, Smb-Apm
- Montague Broiler Ufc, Ufsc, Ufscc, Ufsmc (24 To 72, >10/91
- Grill 2436, 2436T, 2472, 2472T, Grizzly G.
- Range 136-5, 136-559~
- Series:
- Vulcan
- Broiler Hcb1 (Old Cb-1L), Hcb2 (Old Cb-2L), Hcb44
- (Old7844L), Hcbo40 (Old 7840Al), M7806, M7809, Series: Hgb.
- Range 7830.
- Wolf Oven
