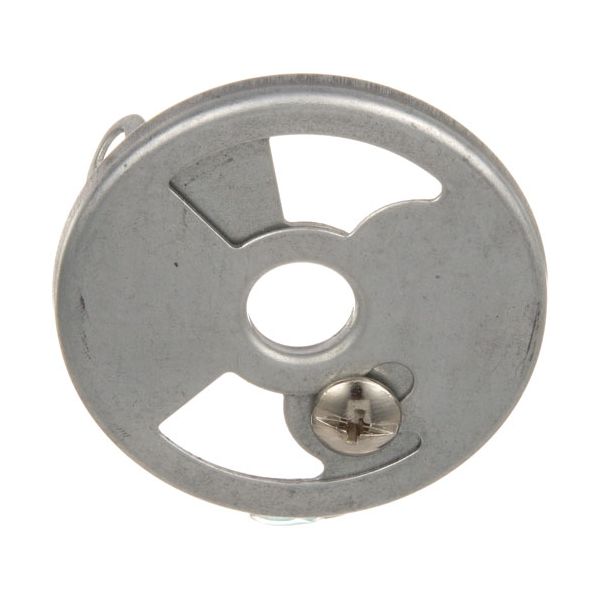

Hobart 719241 Burner Twin Plate Air Shutter 2 Slots .463" Orifice Hole
£7.08
In stock
SKU
719241
Hobart 719241 Burner Twin Plate Air Shutter is a two-slot and a 0.463" orifice hole, an element used to control the air-to-fuel ratio in commercial cooking appliances. It is directly attached to the burner assembly and regulates the amount of air that is introduced into the combustion chamber so that the flames can be maintained at a consistent level and produce maximum heat. It is common component of appliance and hobs and is used to ensure that the temperatures of cooking and the maximum fuel combustion are maintained. This air shutter is used to improve the overall efficiency and performance of the appliance by accurately regulating airflow.
Manufacturer:
Dimensions
- Length: 2.047 cm
- Width: 2.047 cm
- Height: 0.315 cm
- Weight: 0.066 kg
Product Notes
- Air Shutter, Twin Plate, 2 Slots, .463" Orifice Hole, Fits
- 2.092" Dia Burner, W/ Locking Ears, 2-1/4"Od Air Shutter
- For Cast Iron Burner.
- Magikitch'N Charbroiler Series Dmc, Fm-Smb, Smb, Smb-Apm
- Montague Broiler Ufc, Ufsc, Ufscc, Ufsmc (24 To 72, >10/91
- Grill 2436, 2436T, 2472, 2472T, Grizzly G.
- Range 136-5, 136-559~
- Series:
- Vulcan
- Broiler Hcb1 (Old Cb-1L), Hcb2 (Old Cb-2L), Hcb44
- (Old7844L), Hcbo40 (Old 7840Al), M7806, M7809, Series: Hgb.
- Range 7830.
- Wolf Oven
