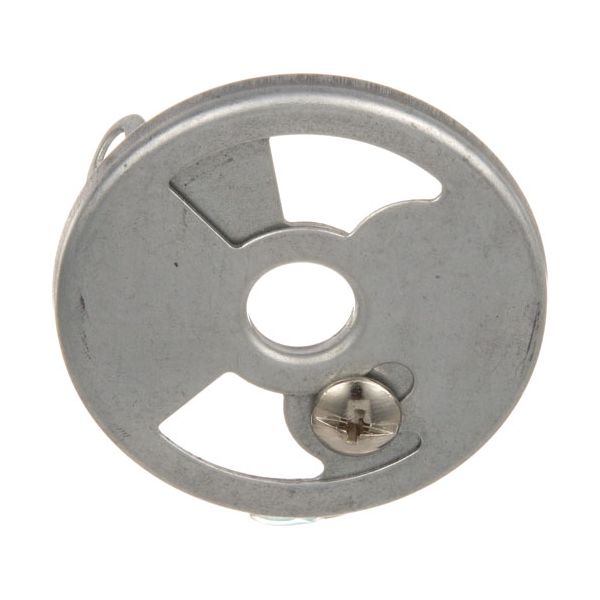

Vulcan Hart 806470 Burner Twin Plate Air Shutter 2 Slots .463" Orifice Hole
£7.08
In stock
SKU
806470
Vulcan Hart 806470 Burner Twin Plate Air Shutter with is having two slots 0.463-inch orifice hole created to control the amount of airflow and gas mixture in commercial cooking equipment. It is used in part of the system and regulates the efficiency of combustion and the stability of the flame in an appliance. It regulates the amount of air intake and maintains a steady level of heat production and better and more efficient use of the appliance. This shutter is commonly attached directly to the system assembly and it reacts with the gas orifice to ensure that the air-to-fuel ratio is correct to ensure maximum performance in kitchen settings.
Manufacturer:
Dimensions
- Length: 2.047 cm
- Width: 2.047 cm
- Height: 0.315 cm
- Weight: 0.066 kg
Product Notes
- Air Shutter, Twin Plate, 2 Slots, .463" Orifice Hole, Fits
- 2.092" Dia Burner, W/ Locking Ears, 2-1/4"Od Air Shutter
- For Cast Iron Burner.
- Magikitch'N Charbroiler Series Dmc, Fm-Smb, Smb, Smb-Apm
- Montague Broiler Ufc, Ufsc, Ufscc, Ufsmc (24 To 72, >10/91
- Grill 2436, 2436T, 2472, 2472T, Grizzly G.
- Range 136-5, 136-559~
- Series:
- Vulcan
- Broiler Hcb1 (Old Cb-1L), Hcb2 (Old Cb-2L), Hcb44
- (Old7844L), Hcbo40 (Old 7840Al), M7806, M7809, Series: Hgb.
- Range 7830.
- Wolf Oven
