How to Troubleshoot a Commercial Dishwasher Water Solenoid Valve: Step-by-Step Guide
A commercial dishwasher water solenoid valve is the linchpin of any professional kitchen’s cleaning cycle, meticulously regulating the precise volume of water that enters during each programme. When a dishwasher water solenoid valve fails, it can disrupt service, compromise hygiene standards, and lead to costly downtime. In this guide, we explore why a water solenoid valve is indispensable in commercial dishwashing and outline common indications of a dishwasher water solenoid valve not working and how to clean or replace it entirely. Whether you’re grappling with a clogged water solenoid valve dishwasher or planning routine upkeep with genuine commercial dishwasher parts, you’ll gain the expertise to diagnose faults, execute safe repairs, and select the right commercial dishwasher spare parts.
Understanding the Dishwasher Water Solenoid Valve

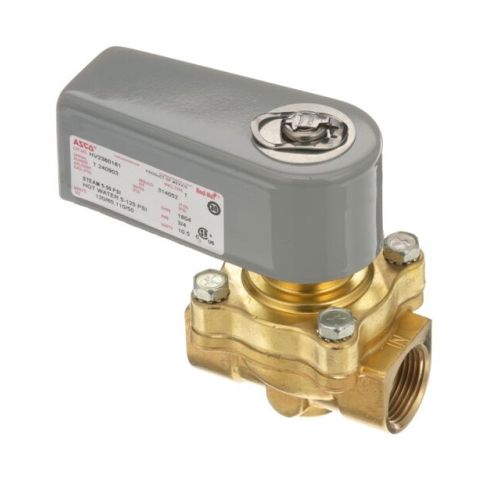

A dishwasher water solenoid valve is an electromechanical device comprising a coil, plunger, spring, diaphragms, and housing. When electrified, the coil generates a magnetic field that lifts the plunger, allowing water to flow. Once de-energised, the spring forces the plunger back, sealing the inlet.
-
A commercial dishwasher water solenoid valve uses industrial-grade materials (stainless steel, high-temp polymers) to withstand hundreds of cycles per day.
-
Commercial valves handle 20–50 litres per minute, whereas domestic units peak at 10–15 L/min.
-
Rated up to 90 °C to meet catering wash programmes, compared to 60 °C for home models.
Correct timing of water admission ensures detergents dissolve fully, sanitisation reaches required standards, and rinse aids rinse away residues. The dishwasher’s wash programme depends on accurate valve operation to deliver repeatable, compliant cleaning cycles.
Signs of a Faulty Dishwasher Water Solenoid Valve
Identifying issues early reduces repair time and expense. Watch for:
-
No water entering the machine: When the valve fails to open, the machine remains dry. Initiated wash cycles stall at the “fill” stage.
-
Unusual noises: A humming or buzzing during what should be a silent fill often signals coil fatigue or partial obstruction.
-
Leaks or overflows: A stuck-open valve allows continuous flow, causing puddles beneath the unit or internal flooding.
-
Extended fill times: If the valve only opens partially due to scale or debris, fill durations lengthen, sometimes doubling or tripling normal timings.
-
Intermittent operation: Randomly inconsistent fills hint at an electrical fault within the coil or wiring.
Such symptoms of a dishwasher with a clogged water solenoid valve should prompt immediate inspection to avoid a full breakdown.
Causes of Dishwasher Water Solenoid Valve Failure
Commercial kitchens subject equipment to relentless use. Common failure drivers include:
-
Mineral and debris buildup: Hard water deposits accumulate on diaphragms and ports, leading to a clogged dishwasher water solenoid valve that fails to seal or open fully.
-
Electrical malfunctions: Coil windings can burn out from voltage spikes or persistent overheating; wiring harnesses degrade from steam and grease exposure.
-
Mechanical wear: Springs lose tension, seals perish, and plunger surfaces erode after thousands of cycles, diminishing responsiveness.
-
Inferior replacement parts: Non-OEM commercial dishwasher spare parts may possess incorrect coil voltages or substandard seals, shortening service life.
-
Chemical attack: Aggressive or incorrect detergents can corrode internal components, especially if left soaking.
Understanding these root causes informs whether to clean the dishwasher water solenoid valve or proceed directly to how to replace the dishwasher water solenoid valve.
Step-by-Step Dishwasher Water Solenoid Valve Troubleshooting Guide
Follow this methodical approach to isolate and resolve valve issues safely:
Preparation
-
Disconnect electrical power at the breaker and unplug the machine where possible.
-
Shut off the water supply at the isolation valve.
-
Wear PPE insulated gloves, safety glasses, and non-slip footwear.
Visual inspection
-
Remove the front service panel.
-
Examine the Water solenoid valve body and hoses for cracks, corrosion, or external scale.
-
Inspect internal wiring for fraying or melting.
Electrical testing
-
Set a multimeter to the resistance (Ω) range.
-
Measure across the coil terminals: a healthy dishwasher water solenoid Valve typically shows 200–500 Ω.
-
Readings approaching ∞ Ω (open circuit) or 0 Ω (short) indicate coil failure.
Mechanical & flow checks
-
Turn the machine’s isolation valve on slightly; listen for leaks at the valve.
-
Detach the inlet hose and blow compressed air through the ports.
-
Inspect colour-coded inlet hoses for kinks or internal collapse.
Cleaning procedure
-
Remove the valve from the chassis.
-
Disassemble the diaphragm and plunger assembly.
-
Soak in a 50:50 solution of mild descaler and warm water for 30 minutes.
-
Rinse thoroughly under running water, reassemble, and retest for smooth plunger travel.
How to Replace the Dishwasher Water Solenoid Valve
When repair isn’t feasible, a clean swap with a quality unit restores reliability.
-
Removing the faulty valve: Label and disconnect electrical connectors, and note polarity. Use a 10 mm spanner to loosen the inlet and outlet fittings. Carefully extract the worn commercial dishwasher water solenoid valve, catching drips with absorbent pads.
-
Selecting the replacement: Choose an OEM commercial dishwasher parts kit matching your machine’s model number. Verify coil voltage (230 V AC in the UK) and inlet thread standard (½" BSP).
-
Measure hoses: check the hose length is 1 metre to ensure proper fit without tension.
-
Installing the new valve: Mount the new solenoid valve using existing brackets; tighten bolts to manufacturer-specified torque. Attach hoses with stainless-steel jubilee clips, ensuring no twist or strain. Reconnect electrical leads, securing with cable ties to prevent vibration damage.
-
Testing the installation: Gradually restore water pressure; inspect for leaks. Reapply power and execute a short rinse programme. Confirm correct fill time and absence of dripping around the valve.
When completed, record the replacement date in your maintenance log and retain the old valve for warranty claims or inspection.
Preventive Maintenance Tips for Dishwasher Water Solenoid Valve
Proactive care markedly extends valve lifespan and safeguards against a dishwasher water solenoid valve not working crisis:
-
Weekly checks: Visually inspect for scale around the valve and hoses.
-
Monthly descaling: Run a service cycle with an approved descaler to clean the dishwasher water solenoid valve internals.
-
Water treatment: Install a softening unit to optimise the supply water hardness below 10 °dH.
-
Stock management: Regularly favour genuine commercial dishwasher spare parts to avoid last-minute substitutions.
-
Staff Training: Empower operators to log unusual sounds or slow fills immediately.
-
Service contracts: Engage a qualified technician for biannual inspections, including coil resistance checks and seal integrity tests.
By adhering to these measures, you prevent mineral buildup, electrical faults, and mechanical wear that precipitate costly failures.
Common Dishwasher Parts that Break: Here's How to Replace Them
A functioning dishwasher water solenoid valve is non-negotiable for busy commercial kitchens. By understanding valve operation, spotting early warning signs, and following a clear troubleshooting and replacement protocol, you can swiftly address a dishwasher water solenoid valve not working scenario. Regular maintenance, the use of genuine commercial dishwasher parts, and prompt staff reporting will keep your dishwasher performing at peak efficiency, upholding hygiene standards and preserving your bottom line. PartsFe UK offers a wide range of high-quality catering spares and restaurant equipment parts, including dishwasher parts, fryer parts, griddle & grill parts, ice machine parts, oven parts, and plumbing parts with fast UK-wide shipping and excellent customer support.
FAQs
Can a faulty Dishwasher Water Solenoid Valve cause drainage problems?
A faulty Dishwasher Water Solenoid Valve usually affects water intake, but in some cases, it can indirectly cause drainage issues if water levels are inconsistent or stuck in the wrong cycle.
How often should a Commercial Dishwasher Water Solenoid Valve be inspected?
In high-usage environments, the Commercial Dishwasher Water Solenoid Valve should be inspected every 3–6 months to ensure smooth water flow and prevent unexpected downtime.
