Continental Refrigerator CRC-20207 Hinge Edgemount Cam Lift CH751
£19.18
In stock
SKU
CRC-20207
Manufacturer:

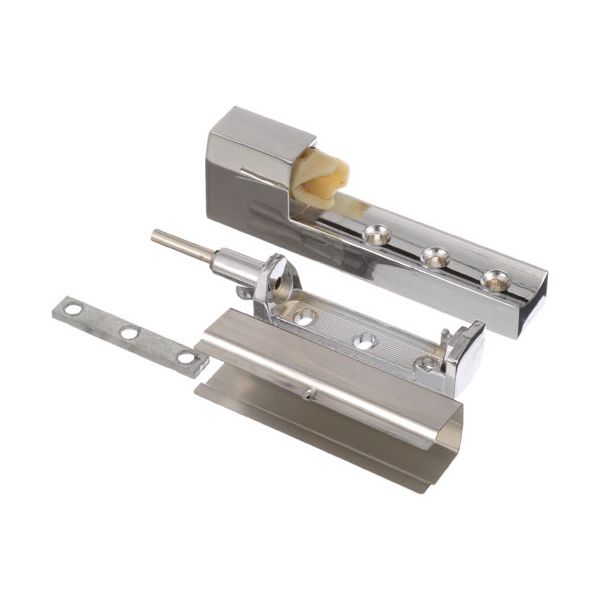

The Continental Refrigerator CRC-20207 Edgemount Cam Lift Hinge CH751 is a mechanical door hinge that can be applied to commercial refrigeration units. Its main purpose is to hold and assist the refrigerator door, and it gives a cam lift effect that minimises drag and makes it easy to open and close. The mechanism operates on a shaped cam surface, which raises the door slightly at the beginning of the movement to keep the gaskets and seals from excessive wear. Installation is done at the edge of the cabinet where the door and frame converge.
Dimensions
- Length: 15.24 cm
- Width: 5.08 cm
- Height: 2.54 cm
- Weight: 0.417 kg
Product Notes
- Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
- 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
- Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
- Series 2850-1013
- Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
- Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
- Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
- Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
- Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
- Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
- Delfield, Randell, Traulsen
- Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
- Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
