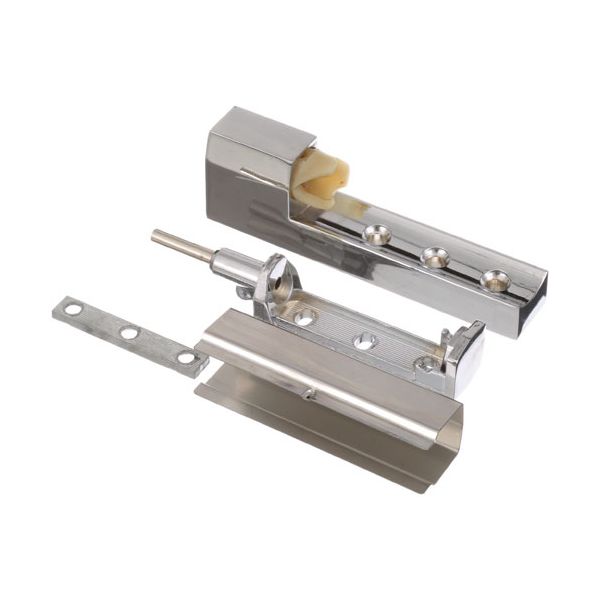

Delfield 323-4617 Refrigerator Hinge Edgemount Cam Lift
£19.18
In stock
SKU
323-4617
Manufacturer:
The Delfield 323-4617 Refrigerator Hinge Edgemount Cam Lift is an accurate part that regulates the motion and position of doors. It operates in the mechanism and it provides a smooth opening and closing of the door while maintaining the correct door position. This is commonly mounted on commercial units, and this is to maintain the door and save on energy usage since the door must work uniformly. It directs its movement making it less prone to misalignment and minimising the wear around it, which will add to the stable operation of the machine in the food service.
Dimensions
- Length: 15.24 cm
- Width: 5.08 cm
- Height: 2.54 cm
- Weight: 0.417 kg
Product Notes
- Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
- 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
- Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
- Series 2850-1013
- Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
- Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
- Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
- Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
- Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
- Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
- Delfield, Randell, Traulsen
- Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
- Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
