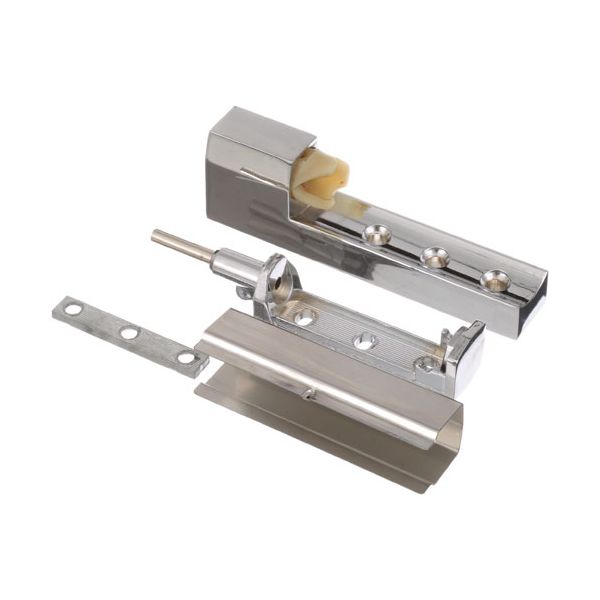

main product photo

Beverage Air 00C34-031D-01 Refrigerator Hinge Assembly Edgemount Cam Lift

Rating:
5 5 7
7  Reviews Add Your Review
£19.18
In stock
SKU
00C34-031D-01
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Beverage Air 00C34-031D-01 Refrigerator Hinge Assembly Edgemount Cam Lift is a mechanical part that assists in the movement of doors. It is attached to the periphery of the door frame and is pivoted smoothly without compromising its proper positioning as it opens and closes. This is used to maintain a uniform door closing and create less tension on the door, which explains the overall energy efficiency and performance of the appliance. It is widely applied in commercial systems where the door movement and stability are needed to keep the temperature under control and to ensure the performance.

Dimensions

  • Length: 15.24 cm
  • Width: 5.08 cm
  • Height: 2.54 cm
  • Weight: 0.417 kg
https://partsfe.com/media/catalog/product/b/e/beverage-air-00c34-031d-01-edgemount-cam-lift-hinge-87106-2.jpg

Product Notes

  • Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
  • 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
  • Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
  • Series 2850-1013
  • Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
  • Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
  • Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
  • Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
  • Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
  • Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
  • Delfield, Randell, Traulsen
  • Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
  • Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
BEVERAGE AIR:
00C34-031D-01, 00C34031D01, 401-239B, 401-657B, 401657B, BEV401-239B, BEV401-657B
FOGEL:
HUSSMANN:
Reviews 7
Write Your Own Review
You're reviewing:Beverage Air 00C34-031D-01 Refrigerator Hinge Assembly Edgemount Cam Lift
Your Rating
FAQS
Customer Questions
No Questions
Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Open the door and support it securely to prevent movement.

Step2: Remove the existing hinge by unscrewing it from the door and frame.

Step3: Align the new cam lift hinge with the mounting holes.

Step4: Secure the hinge with screws, ensuring proper engagement of the cam mechanism.

Step5: Check door alignment and adjust hinge position if necessary.

Step6: Test the door for smooth opening and proper lift operation.
