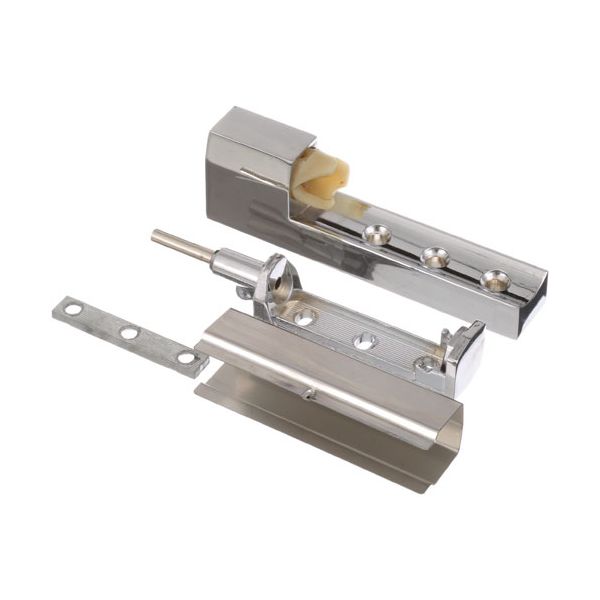

Beverage Air 00C34031D01 Refrigerator Hinge Edgemount Cam Lift
£19.18
In stock
SKU
00C34031D01
Manufacturer:
The Beverage Air 00C34031D01 Refrigerator Hinge Edgemount Cam Lift is a machined part that is used in opening and closing commercial doors. It is particularly applied in units, where it is the door to the weight and performs correctly during usage, which is at the point it provides a smooth movement and steady positioning, which minimises the damage on the door and frame, and also ensures that there is an effective seal. This element is in the efficiency of the system, as it is in the maintenance of temperature.
Dimensions
- Length: 15.24 cm
- Width: 5.08 cm
- Height: 2.54 cm
- Weight: 0.417 kg
Product Notes
- Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
- 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
- Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
- Series 2850-1013
- Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
- Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
- Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
- Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
- Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
- Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
- Delfield, Randell, Traulsen
- Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
- Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
