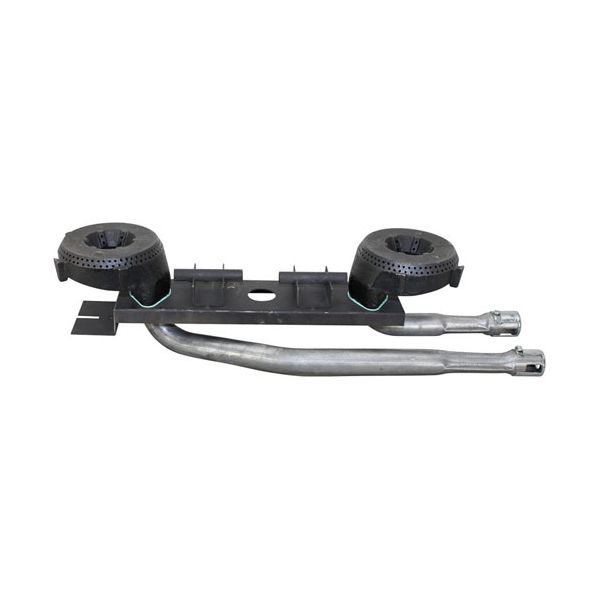

Vulcan Hart 705480-A Open Top Burner Assembly, Head Cast Iron/Steel
Special Price £102.64 Regular Price £188.16
Out of stock
SKU
705480-A
Manufacturer:
The Vulcan Hart 705480-A Open Top-Burner Assembly is a commercial gas range burner that distributes heat evenly for cooking purposes. The burner head of this assembly consists of cast iron and steel materials which ensure both heat retention and extended durability. The burner assembly includes vital components which consist of air shutters together with venturis and mounting plates and gaskets and screws for easy installation. The exact design of venturi system delivers perfect gas air mixing which creates sustained powerful flames. It improves their cooking efficiency while offering durability needed for demanding high temperature projects and strenuous workplace conditions.
Dimensions
- Length: 49.53 cm
- Width: 15.24 cm
- Height: 11.43 cm
- Weight: 2.722 kg
Product Notes
- Open Top Burner Assy
- [ 19.5"] From Air Shutter Side Of Long Venturi To The Burner
- Head Ci/Steel
- Air Shutter # 26-1863 (2),
- Burner Head # 24-1105 (2)
- Mounting Plate # 26-3218 (1)
- Gaskets # 32-1165 (4)
- Front Venturi # 26-3212
- Note: The Front Venturi Is 7" Long From
- Ctr Of Holes To End Of Air Shutter.
- Rear Venturi # 26-3213
- The Rear Venturi Is 15-5/8" Long From
- Ctr Of Holes To End Of Air Shutter.
- Mounting Screws 10-24 X 1/2" (4)
- Wolf Ch, Chss
