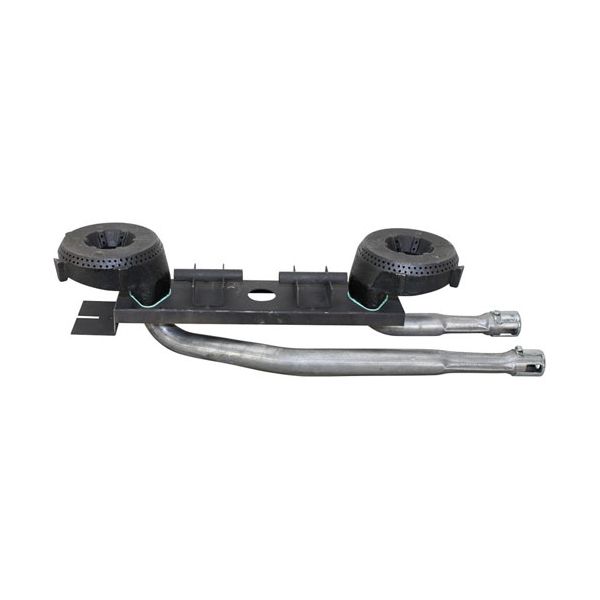

Vulcan Hart 00-753141-0000A Open Top Burner Assembly, Head Cast Iron/Steel
Special Price £102.64 Regular Price £188.16
Out of stock
SKU
00-753141-0000A
Manufacturer:
The Vulcan Hart 00-753141-0000A Open Top Burner Assembly Head functions as heat distribution system for commercial kitchen ranges. The product consists of cast iron and steel components which provide heat distribution while ensuring extended performance duration. The complete assembly contains all necessary components such as air shutters and burner heads and venturis and mounting plates and gaskets to enable quick installation and dependable operation. This product exists for heavy work environments and delivers precise cooking control through a reliable flame system which makes it perfect for large food service operations. The high-strength materials in its design give extended operational life to the equipment.
Dimensions
- Length: 49.53 cm
- Width: 15.24 cm
- Height: 11.43 cm
- Weight: 2.722 kg
Product Notes
- Open Top Burner Assy
- [ 19.5"] From Air Shutter Side Of Long Venturi To The Burner
- Head Ci/Steel
- Air Shutter # 26-1863 (2),
- Burner Head # 24-1105 (2)
- Mounting Plate # 26-3218 (1)
- Gaskets # 32-1165 (4)
- Front Venturi # 26-3212
- Note: The Front Venturi Is 7" Long From
- Ctr Of Holes To End Of Air Shutter.
- Rear Venturi # 26-3213
- The Rear Venturi Is 15-5/8" Long From
- Ctr Of Holes To End Of Air Shutter.
- Mounting Screws 10-24 X 1/2" (4)
- Wolf Ch, Chss
