Vulcan Hart 00-705480-0000A Open Top Burner Assembly, Head Cast Iron/Steel

Special Price £102.64 Regular Price £188.16
Out of stock
SKU
00-705480-0000A

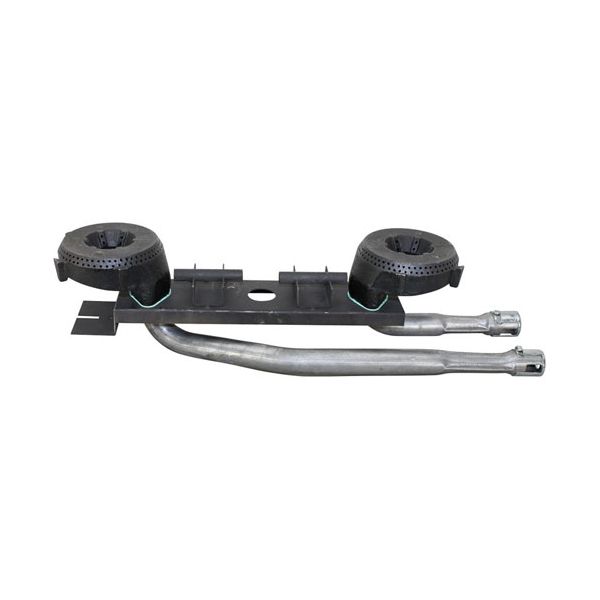

The Vulcan Hart 00-705480-0000A Open Top Burner Assembly is a gas stove and range component that delivers even cooking heat. The burner assembly incorporates cast iron and steel materials in its head section because these materials deliver exceptional durability and maintain heat well. A controlled flame emerges from the burner assembly through its gas regulation system which enables uniform heating. This part enables proper fuel-air mixture before combustion to achieve efficient cooking performance. The ignition head is intended for mixing fuel and air prior to combustion, with the mix velocity determined by the distance between the diffuser and the fuel and air entry point.

Dimensions

  • Length: 49.53 cm
  • Width: 15.24 cm
  • Height: 11.43 cm
  • Weight: 2.722 kg
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-00-705480-0000a-open-top-burner-assembly-head-cast-iron-steel-35316-2.jpg

Product Notes

  • Open Top Burner Assy
  • [ 19.5"] From Air Shutter Side Of Long Venturi To The Burner
  • Head Ci/Steel
  • Air Shutter # 26-1863 (2),
  • Burner Head # 24-1105 (2)
  • Mounting Plate # 26-3218 (1)
  • Gaskets # 32-1165 (4)
  • Front Venturi # 26-3212
  • Note: The Front Venturi Is 7" Long From
  • Ctr Of Holes To End Of Air Shutter.
  • Rear Venturi # 26-3213
  • The Rear Venturi Is 15-5/8" Long From
  • Ctr Of Holes To End Of Air Shutter.
  • Mounting Screws 10-24 X 1/2" (4)
  • Wolf Ch, Chss
