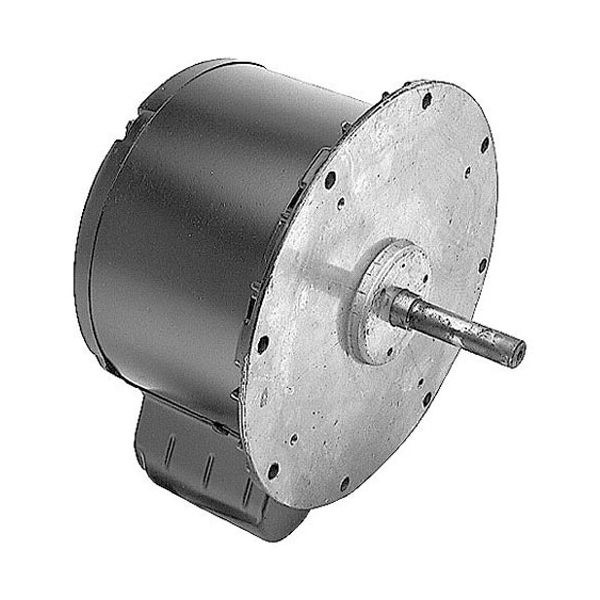

Vulcan Hart VH411205-00007 Motor 1725 RPM 1/2HP 115/230V 1PH
Special Price £269.48 Regular Price £434.44
In stock
SKU
VH411205-00007
The Vulcan Hart VH411205-00007 1/2 HP Motor Shaft functions as a power transmission component for commercial kitchen. The motor operates with a 1/2 HP power output and CW rotation for efficient operation. This motor shaft maintains a 5/8" x 2-7/8" size which allows it to work with different appliances for enhanced operational efficiency.
Manufacturer:
Dimensions
- Length: 48.26 cm
- Width: 30.48 cm
- Height: 26.67 cm
- Weight: 12.746 kg
Product Notes
- [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
- [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
