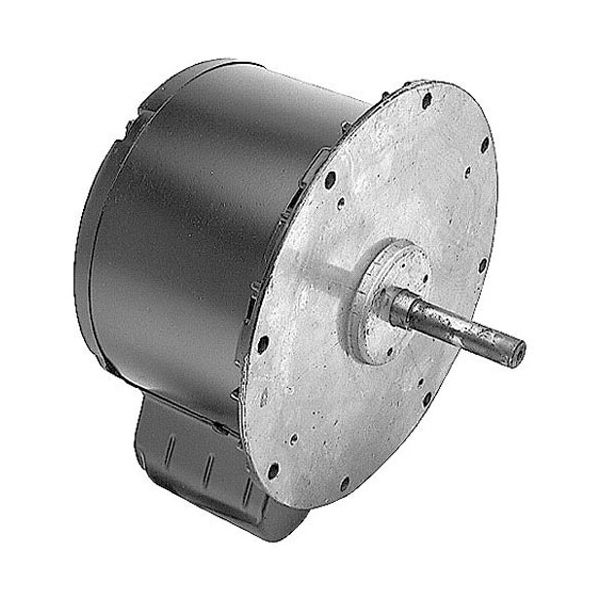

Vulcan Hart VH18386 Motor Clock Wise 1/2 HP 115/230V
Special Price £269.48 Regular Price £434.44
In stock
SKU
VH18386
The Vulcan Hart VH18386 1/2 HP Motor exists for commercial kitchen appliances to provide dependable performance in typical operational settings. The motor operates through a 5/8" x 2-7/8" shaft with clockwise rotation to provide efficient power for ventilation systems and mixers as well as other appliances. The motor enables continuous performance at a steady rate which minimizes equipment stoppages. Restaurants together with food service operations can depend on this motor to sustain their essential kitchen operations.
Manufacturer:
Dimensions
- Length: 48.26 cm
- Width: 30.48 cm
- Height: 26.67 cm
- Weight: 12.746 kg
Product Notes
- [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
- [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
