Vulcan Hart VH111205-5 1/2 HP Motor W/ 5/8" X 2-7/8" Shaft CW
Special Price £269.48 Regular Price £434.44
In stock
SKU
VH111205-5

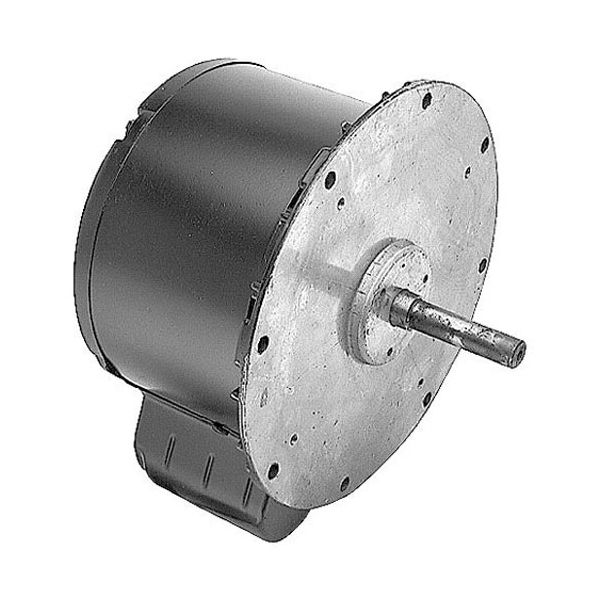

The Vulcan Hart VH111205-5 Motor functions to drive commercial blowers and ventilation systems. This machine operates reliably through its 1/2 horsepower, 1725 RPM motor which serves multiple industrial applications and the motor functions at two voltage levels including 115V and 230V. The motor features 5/8" x 2-7/8" shaft dimensions and CW rotation that allows it to work with multiple systems to provide smooth efficiency and extended durability.
Manufacturer:
Dimensions
- Length: 48.26 cm
- Width: 30.48 cm
- Height: 26.67 cm
- Weight: 12.746 kg
Product Notes
- [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
- [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
