Southbend SOU1183200 Commercial Oven Hot Surface Igniter
Special Price £128.91 Regular Price £227.61
In stock
SKU
SOU1183200
The Southbend SOU1183200 Commercial Oven Hot Surface Igniter is a component of an ignition system that is fitted in compatible burners. It operates by an electric signal which generates heat or a spark which allows gas released to burn in the burner assembly. The ignitor is attached to the combustion or burner chamber of the oven and connected to the ignition control circuit. In the oven system, it forms part of the ignition process which initiates the burner and supports in the controlled heating in the normal cooking cycles.
Manufacturer:
Dimensions
- Length: 7.62 cm
- Width: 7.62 cm
- Height: 15.24 cm
- Weight: 0.036 kg
Product Notes

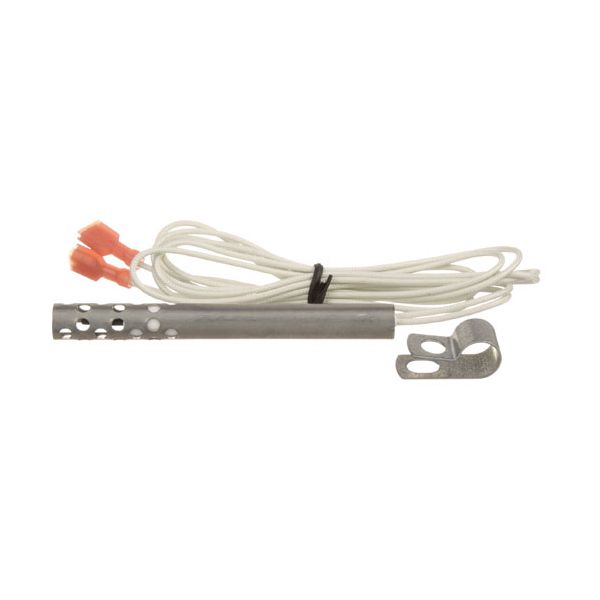

- Igniter, 3/8" X 4" Metal Tube With Ceramic Inside
- With Many Holes On End And Ignitor Bar Inside,
- 24V, Has 36" Leads With 1/4" F Push-Ons.
- Southbend Model: Gh10Sc. 08/97 & Newer Units.
- Slgs After 08/96
- Older Units Use F337, Ccc# F-294, # 441206
- 1St 2 Digits Of Serial # = Year
- Followed By A Letter = Month
- Example: 01H20877 = August 2001
