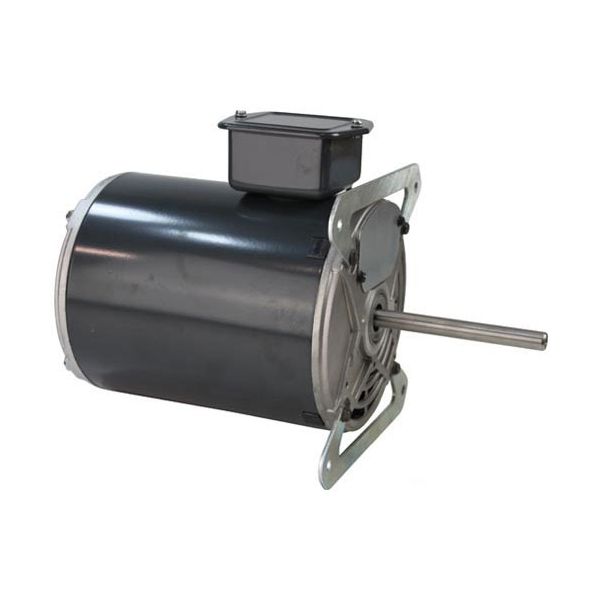

Southbend SOU1175567 Blower Motor 0.5/0.14HP 1725/1140 RPM 115V
Special Price £1,128.50 Regular Price £1,235.87
In stock
SKU
SOU1175567
The Southbend SOU1175567 Blower Motor provides better airflow and manages to maintain efficient operation in commercial systems. It produces 0.5/0.14HP at 1725/1140 RPM and has 115V and is used in commercial units, whereby it supplies air to ensure that the temperatures are kept in a constant manner and the cooking outcomes are even. It is the main blower in the appliance that ensures efficient heat distribution and performance of the system. This motor can be maintained or replaced accordingly and it has been fitted to the existing system.
Manufacturer:
Dimensions
- Length: 26.416 cm
- Width: 20.701 cm
- Height: 17.78 cm
- Weight: 10.433 kg
Product Notes
- [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
- [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
- Frame 56Z, 2 Speed.
- [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
- White Common
- Black Power To Fan Switch - Hi
- Red Power To Fan Switch - Lo
- Blue/Purple Or Brown/Brown To Centrifugal Switch.
- If Oven Does Not Have Centrifugal Switch Then
- Wire Together W/ Wire Nut.
- If Only Using For One Speed, Then Wire Nut Red Wire.
- Southbend
- Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs
