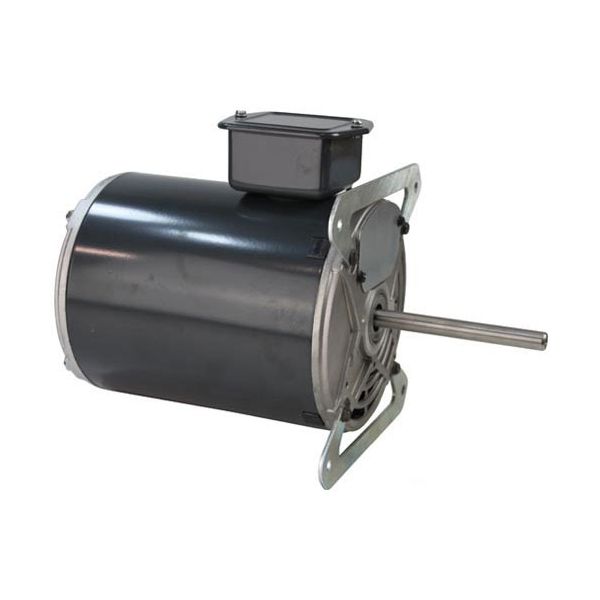

Southbend 4440367 Blower Motor 0.5/0.14HP 1725/1140 RPM 115V
Special Price £1,128.50 Regular Price £1,235.87
In stock
SKU
4440367
The Southbend 4440367 Blower Motor provides air flow to sustain the equal temperatures in professional cooking parts. It delivers 0.5/0.14HP at 1725/1140RPM and operates on 115 V. It is installed to run on commercial units to circulate the air in a manner that it will cook evenly and keep the temperature. It is the main blower of the appliance, which enhances the distribution of heat and enhances the overall functioning of the system. This motor is easily maintained, and it can be easily installed into the already existing setup of the system so that it can be operated effectively.
Manufacturer:
Dimensions
- Length: 26.416 cm
- Width: 20.701 cm
- Height: 17.78 cm
- Weight: 10.433 kg
Product Notes
- [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
- [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
- Frame 56Z, 2 Speed.
- [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
- White Common
- Black Power To Fan Switch - Hi
- Red Power To Fan Switch - Lo
- Blue/Purple Or Brown/Brown To Centrifugal Switch.
- If Oven Does Not Have Centrifugal Switch Then
- Wire Together W/ Wire Nut.
- If Only Using For One Speed, Then Wire Nut Red Wire.
- Southbend
- Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs
