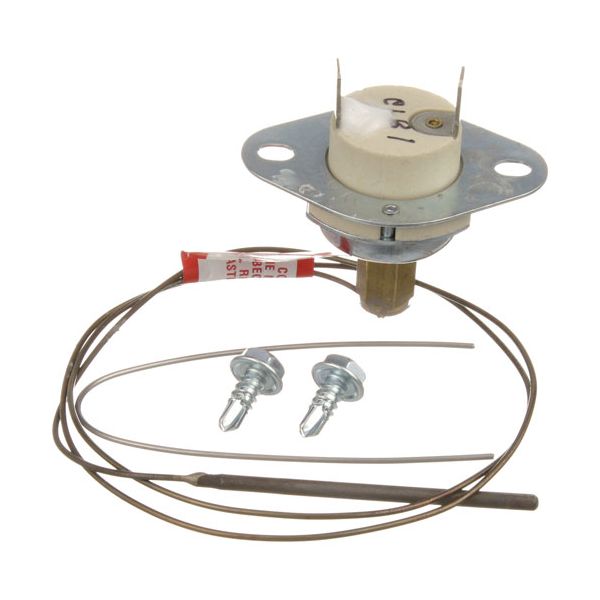

Keating 004168 Flame Switch
Special Price £417.65 Regular Price £488.48
In stock
SKU
004168
Manufacturer:
The Keating 004168 Flame Switch is an electrical safety system that is used to detect the existence of a flame and provide a signal to the control system to control the operation of the burners. This flame switch is applied in heating systems where the combustion is to be monitored to ensure the safe ignition and shut-off sequence. It is mounted close to the burner assembly in such a way that it is able to detect ionisation or the presence of a flame and report to the control circuitry.
Dimensions
- Length: 8.89 cm
- Width: 8.89 cm
- Height: 3.81 cm
- Weight: 0.091 kg
Product Notes
- Flame Switch, Contains Mercury, Harper Wyman,
- 26" Cap, Bulb 1/8" X 2-3/16", Normally Open Pilot Safety,
- Metal Mounting Plate W/ 2 Ea Mt Holes Ctrs 1-5/8".
- 2Ea 1/4" Tab Terminals, N.O.& Com,
- 2 Sheet Metal Mt Screws,
- Includes Instructions
- This Is The Old Style Keating Flame Switch.
- For New Style Keating Flame Switch, Keating Supplies A
- Conversion Kit. Model And Serial #S Required. Special Order
