Ice-O-Matic 9101084-01 2-Pole Relay 120V

Rating:
5 5 6
6  Reviews Add Your Review
Special Price £67.79 Regular Price £91.35
In stock
SKU
9101084-01
Add to Wish List
Electrical & Hardware, Switches & Relays, Shop by manufacturers
Manufacturer:
The Ice-O-Matic 9101084-01 2-Pole Relay 120 V is an electrical switching part that can be used in compatible commercial appliances. This relay operates at 120 volts and opens and closes circuits to switch power to major components of the system, compressors or fan motors, based on signals sent by the control board. It is at the centre of the coordination of start-up and operational cycles and the electrical loads are properly managed. This relay is usually installed in the internal control compartment of the machine as a component of the entire electrical system.

Dimensions

  • Weight: 0.057 kg

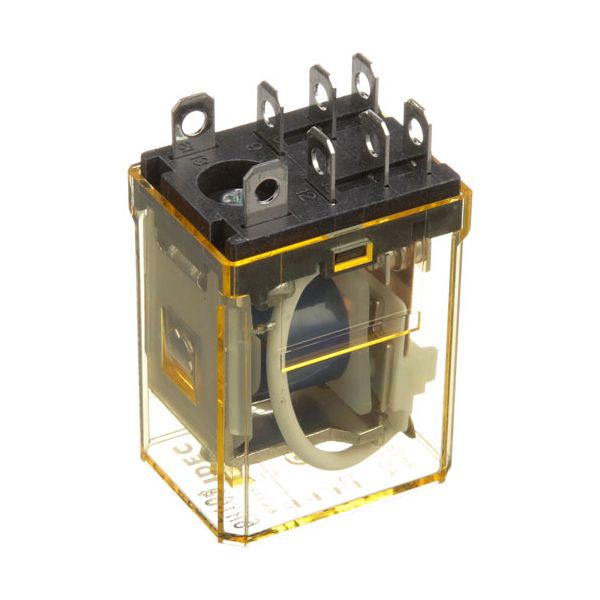

https://partsfe.com/media/catalog/product/i/c/ice-o-matic-9101084-01-4-pole-relay-w-3-16-male-terminals-10-amps-120v-39465-2.jpg
Manufacturer Name: Ice-O-Matic
Product Number: 9101084-01
OEM Part Number: 9101084-01
Product Description: The Relay (4P 10A 110-120V) for Ice-O-Matic used in refrigerators and freezers is an electrical component designed to control various functions within these appliances. The Relay4P is designed to operate at a voltage rating of 110-120V, which is commonly used in household electrical systems. This relay has four poles, which means it can control multiple electrical circuits or functions simultaneously. In refrigerators and freezers, it can manage different components, such as the compressor, evaporator fan, defrost heater, and more. The relay is rated to handle a current of up to 10 amperes. This rating ensures it can safely manage the electrical load of various components in the appliance. The Relay4P serves as a switch that can be controlled by the appliance's thermostat or control board. When the thermostat detects a temperature change, it activates the relay to turn specific components on or off. Ice-O-Matic 9101084-01 Relay 2 Pole 120 V is specifically designed for use in refrigerators and freezers but can also be used in other appliances and equipment where its voltage and amperage ratings are compatible. Relays often include safety features to prevent overheating or electrical faults. They are designed to disconnect power to the controlled components in case of a malfunction to avoid damage. The relay is typically designed for easy installation and may include standard electrical terminals for wiring connections. The Ice-O-Matic 9101084-01 Relay 2 Pole 120 V serves as a critical component in these appliances, controlling various functions while ensuring safety and durability in the challenging environment of refrigeration systems.

Key Features of the relay used for Ice-O-Matic are:

  • Reliable voltage rating
  • Control multiple electrical circuits simultaneously.
  • Resistant to moisture and corrosion for reliability.
  • Designed for straightforward wiring.
Similar Models:03524 - Cleveland
Dimensions:
Length:1.75in/4.44cm
Width:1in/2.54cm
Height:0.75in/1.9cm
Weight:0.1lbs/45.36g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe UK!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at +44 2921680023 or contact@partsfe.co.uk



Replaces Parts
CLEVELAND:
ICE-O-MATIC:
Reviews 6
Write Your Own Review
You're reviewing:Ice-O-Matic 9101084-01 2-Pole Relay 120V
Your Rating
FAQS
Customer Questions
No Questions
Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the power to the unit before beginning installation.

Step2: Remove the old relay by disconnecting all terminals carefully.

Step3: Align the new relay in the mounting slot.

Step4: Connect each terminal to the matching wire using the male connectors.

Step5: Secure the relay in place to prevent movement.

Step6: Restore power and test for proper operation.

Step7: Avoid touching live wires during installation.
