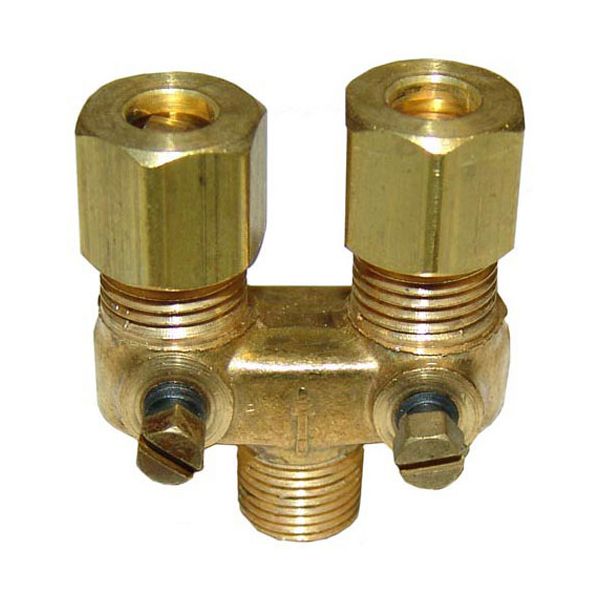

Garland GL1510402 Double Pilot Valve 1/8" MPT X 3/16" CCT
Special Price £18.35 Regular Price £28.03
In stock
SKU
GL1510402
Manufacturer:
The Garland GL1510402 Double Pilot Valve 1/8 MPT x 3/16 CCT is a gas control component that is fitted in commercial cooking equipment to control the flow of gas to the pilot burner. It has a 1/8-inch male pipe thread inlet and a 3/16-inch compression outlet, which enables it to be connected to the gas supply line of the appliance. This valve is fitted or changed in usage in the maintenance of a valve to aid in the accurate pilot ignition and steady flame operation. In the gas delivery system of the appliances, it is used to maintain the proper pressure and flow of gas to provide normal operating conditions of stable, secure ignition.
Dimensions
- Length: 3.048 cm
- Width: 1.778 cm
- Height: 3.81 cm
- Weight: 0.091 kg
Product Notes
- Dual Pilot Adjustment Valve
- [ 1/8" Mpt X 3/16" Cct ] [Width 1.25"],
- [ Comes With Twin 3/16" Cct ]
- American Range, Royal Range
- Bakers Pride Broiler Series: 50, Ch, Xx, Sgbr
- Imperial Broiler Series: Eba, Gd, Icb, Irb.
- Grill Series: Imga.
- Range Series: Icra, Ispa.
- Roaster Series: Ipr, Ipra.
- Rankin-Deluxe Broiler Series: Drb.
- Southbend Oven Series 400
- Us Range Broiler Bbq-48, C-Hds-A(24,36,48).
- Gxc(24,36,48), Gxr(30,36,48,60) Series:Performer, Rg-Hds-A.
- Wolf Broiler Cmss, Fcb, Scb.
- Range Ch, Chss.
