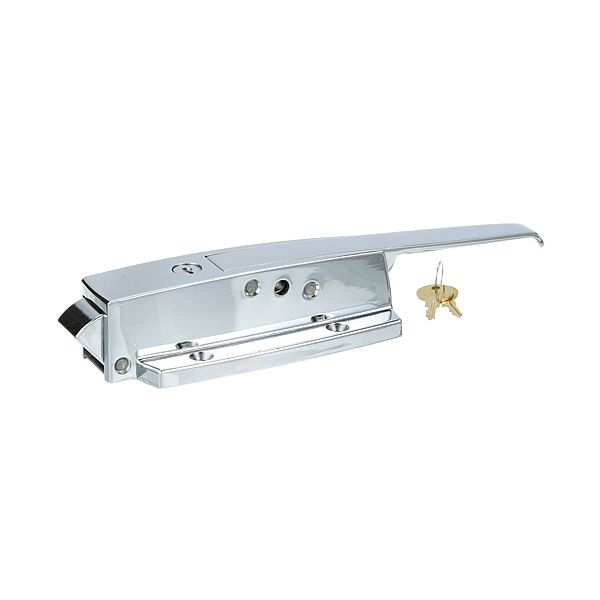

Component Hardware Group W38-Y001-C Latch With Lock
Special Price £105.88 Regular Price £163.14
In stock
SKU
W38-Y001-C
Manufacturer:
The Component Hardware Group W38-Y001-C Latch With Lock is a mechanical component that is used to fix panels in a system. This latch works by locking a system that keeps the panels closed and opens them under the control of the user when needed. It is widely applied in industrial and commercial installations where there is a need to control access to internal components to maintain or operate them. The design of the latch is in harmony with the mounting points and other components, which are compatible and allow easy operation and alignment.
Dimensions
- Length: 30.48 cm
- Width: 8.255 cm
- Height: 5.08 cm
- Weight: 3.493 kg
Product Notes
- Latch Only, With Lock, No Strike, Polished Chrome.
- 11-3/4" Overall Length
- 3-3/8" Mount Hole Centers
- Solid Ss Inner Working Parts And Forged Brass Handle.
- Strike W/4 Hole Base 3-7/32"W X 1-29/32"L.
- #26-1893 Flush To 3/8" Offset
- #26-1894 3/4" To 1-5/8" Offset
- #26-1895 1-3/4" To 2-1/2" Offset
- Use With #22-1529 Safety Release Handle.
- Chg W38
