Star Mfg 2E-Z21556 Infinite Switch 15A 120V
Special Price £29.92 Regular Price £38.86
In stock
SKU
2E-Z21556
Manufacturer:

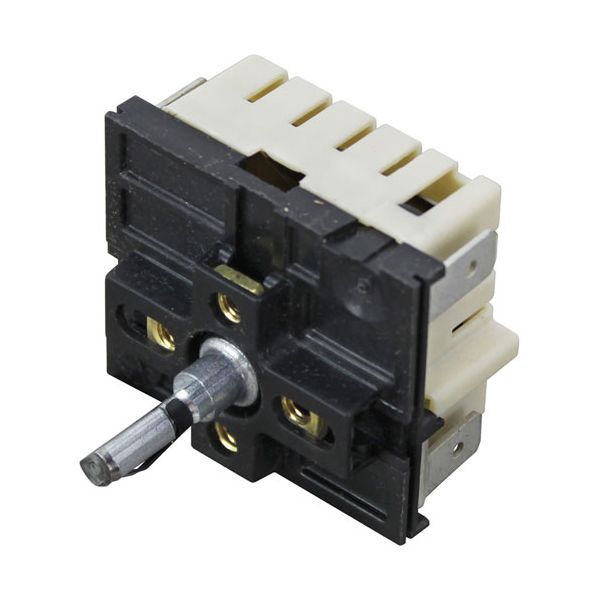

The Star Mfg 2E-Z21556 Infinite Switch 15A 120 V is a heat control element that is used in electric commercial cooking systems and permits the heating elements, to be controlled with better accuracy. It provides adjustable power output, which allows for low-to-high settings and allows for the smooth adjustment of the temperature during cooking. This switch is normally mounted behind the control panel of the appliance, which is linked to the heating element to switch current flow based on the user's selection of the user. It provides a consistent performance in the system, which promotes secure operation.
Dimensions
- Length: 5.715 cm
- Width: 4.445 cm
- Height: 4.445 cm
- Weight: 0.091 kg
Product Notes
- 120V/15A )( Infinite ), Terminal( 5~
- 1/4" Tab~
- L1,L2(Line),P(Pilot),H1,H2(Load) )~
- Contacts( N.O. )'
- Style( Rotary )~
- Markings( 1-10 ) Shaft( 3/16" Od~
- 3/4" Long~
- .187" Flat Up ) 4 Screw Mt.
- Wells Knob Off-Lo-2-3-4-5-6-7-8-Hi # 22-1073 (Flat Up)
- Bloonfield Model?
- Delfield
- Warmer Series: 8300. Taco Bell & Kfc Units.
- Wells Warmer H33, Hw/Smp, Mod (All), Smp, Smpt, Ss4, Ss8,
- Ss10-4, Ss10-8, Ss10-10Ul, Sw8, Sw10-T, Tmp.
- Hotplate H(65,70,115)
