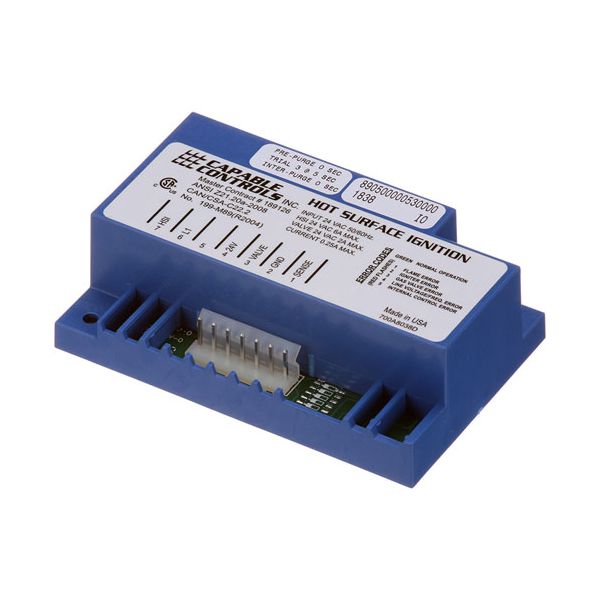

Southbend SOU1175723 Convection Oven Ignition Control Module
Special Price £338.12 Regular Price £631.06
In stock
SKU
SOU1175723
The Southbend SOU1175723 Ignition Control Module is a component of electronic control equipment that is used for controlling the ignition operations in compatible commercial cooking equipment. It operates by getting a signal through the control system of the appliance and triggers the ignition delay to ignite burners or heating components. The module can be installed in the control compartment of the equipment, and it is attached to both the gas valve and sensor wiring in normal operation. It is the control interface in the entire system that activates and controls ignition operations in standard cooking processes.
Manufacturer:
Dimensions
- Length: 12.7 cm
- Width: 8.255 cm
- Height: 3.81 cm
- Weight: 0.181 kg
Product Notes
- Southbend Has Swiched From Fenwal To A Capable Controls
- Module,Which Is Blue. Wire Harness Is #38-1352.
- If Ordering For Bakers Pride, The Old Ram Module Is Needed,
- Order # 44-1575 Or # 44-1387 For The Kit That Includes The
- Wire Harness.
- Wire Harness For 44-1387 Kit Available Separately As No.
- 38-1352, Which Will Fit Either Ram Or Fenwall Modules.
- Bakers Pride Use # 44-1575 Or Kit # 44-1387
- Southbend Gb-12Cch, Gb-12Pc, Gb-12Rt, Gb-12Sc, Gb-15Cch,
- Gb-15Pc, Gb-15Rt, Gb-15Sc, Gb-22Cch, Gb-22Pc, Gb-22Rt,
- Gb-22Sc, Gb-25Cch, Gb-25Pc, Gb-25Rt, Gb-25Sc, Gs-12Cch,
- Gs-12Pc, Gs-12Rt, Gs-12Sc, Gs-15Cch, Gs-15Pc, Gs-15Rt,
- Gs-15Sc, Gs-22Cch, Gs-22Pc, Gs-22Rt, Gs-22Sc, Gs-25Cch,
- Gs-25Pc, Gs-25Rt, Gs-25Sc, Slgb-12Sc, Slgb-12Scch,
