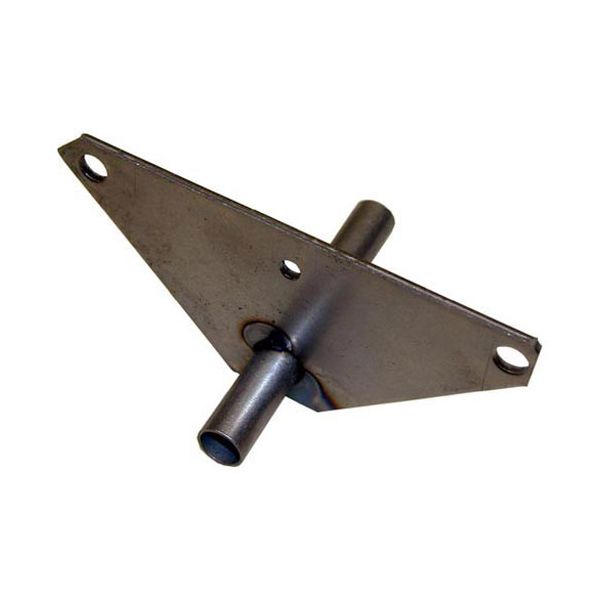

Southbend 1195164 Quadrant Assembly
Special Price £49.63 Regular Price £87.53
In stock
SKU
1195164
Manufacturer:
The Southbend 1195164 Quadrant Assembly is a spare component that is applied in commercial cooking equipment to control the movement of valve or control shafts. It translates the movement of a control knob into the fine electrical control of the appliance. The quadrant assembly is normally mounted behind the control panel, and connects the user interface with the internal control system, enabling the accurate control of the gas or temperature settings. It is also used in commercial kitchen appliances to facilitate stable operation, monitored response to control, and secure performance of the appliances in operations in kitchen and foodservice settings.
Dimensions
- Length: 12.7 cm
- Width: 6.35 cm
- Height: 8.89 cm
- Weight: 0.181 kg
Product Notes
- Quadrant Assembly,
- 4-5/16" Hole Ctrs, 1/2" Od Tube 1-1/4" Out One Side
- And 2-1/4" Out The Other Side, 1/8" Steel Plate
- Overall Tube Length = 3 5/8"
- Tube 1/2" Od, .425" Id
- Southbend Oven Series: 324,336,348,360,424,436,448,460
