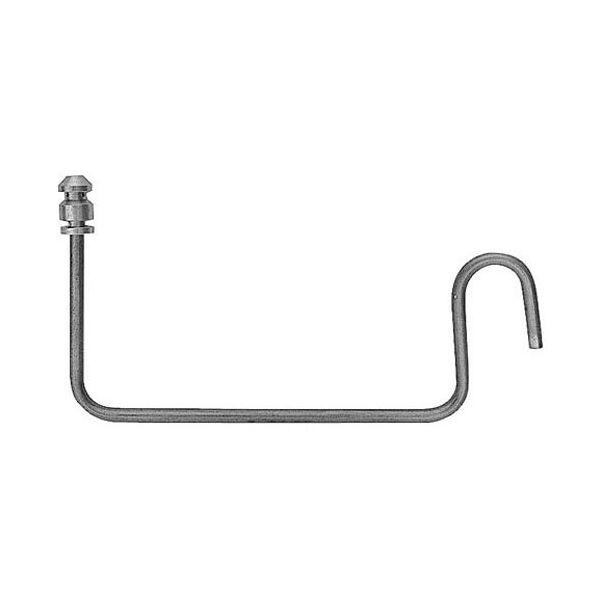

main product photo

Rankin Delux TB-09 Charbroiler Pilot Tube With Tip

Be the first to review this product
Special Price £53.13 Regular Price £69.00
Out of stock
SKU
TB-09
Add to Wish List
Griddle & Grill Parts, Pilot Burners,
Manufacturer:
The Rankin Delux TB-09 Charbroiler Pilot Tube With Tip is a gas delivery part that is used to direct a regulated flow of fuel to the pilot section appliance during normal operation. This product arranges the flow of the gases in such a way that the pilot flame can be set consistently, and the main burners of commercial cooking equipment can be accurately ignited. It is applied in commercial kitchen appliance that require a steady pilot flame to be started and operated regularly.

Dimensions

  • Length: 15.875 cm
  • Width: 6.35 cm
  • Height: 5.715 cm
  • Weight: 0.045 kg
https://partsfe.com/media/catalog/product/r/a/rankin-delux-tb-09-pilot-tube-6-wide-2-1-4-to-slot-x-5-x-2-5-8-x-1-1-8-x-1-1-4-for-broiler-17922.jpg

Product Notes

  • 6" Wide, 2-1/4" To Slot X 5" X 2-5/8" X 1-1/8" X 1-1/4"
  • Rankin-Delux Broiler Series Drb, Rb-8, Tb-3, Tb-8
More Information
Disable SaleableYes
Replaces Parts
RANDELL:
RANKIN DELUX:
Reviews
Write Your Own Review
You're reviewing:Rankin Delux TB-09 Charbroiler Pilot Tube With Tip
Your Rating
FAQS
Customer Questions
No Questions
Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off gas supply and ensure equipment is fully cool.

Step2: Remove appliance access panel to reach pilot assembly area.

Step3: Disconnect existing pilot tube and mounting fittings.

Step4: Position new pilot tube in correct alignment slot.

Step5: Secure all connections tightly and check fitment.

Step6: Replace the panel, restore gas supply, inspect for leaks, then test flame ignition.
