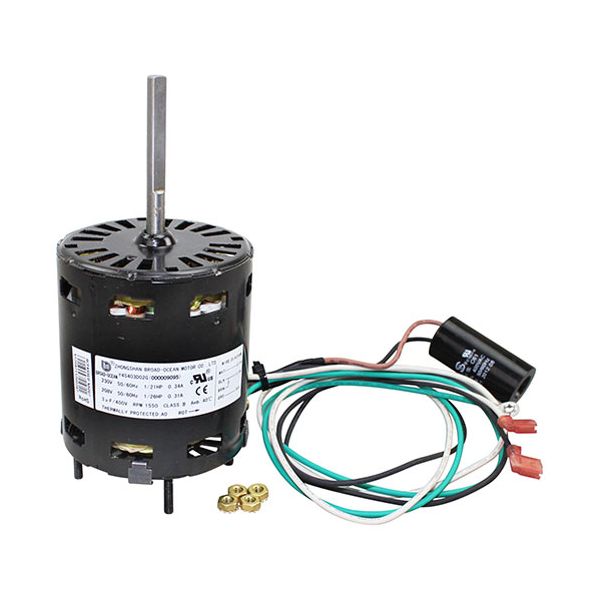

Manitowoc 000002315 Ice Machine Fan Motor
Special Price £352.88 Regular Price £515.90
In stock
SKU
000002315
Manufacturer:
The Manitowoc 000002315 Ice Machine Fan Motor is a circulation component that is used to circulate air in the refrigeration section of an appliance. This fan motor is powered by a shaft to rotate the fan blade and to blow air over the condenser or evaporator coils to aid in heat exchange and to maintain a steady production of ice. It is fitted in the airflow compartment where it is needed to cool and remove vapour and it connects to the electrical and mounting points of the unit. In the general system.
Dimensions
- Length: 17.78 cm
- Width: 17.78 cm
- Height: 12.7 cm
- Weight: 1.987 kg
Product Notes
- Fan Motor,
- 230-50/60Hz (1/21Hp, .34A), 208-50/60Hz (1/26Hp, .31A),
- Shaft = 5/16" X 2" W/ One Flat Side
- Manitowoc Bd0422A, Bd0423W, Bd0452A, Bd0453W, Bd0492N,
- Bd0602A, Bd0603W, Bd0692N, Br0420A, Br0421W, Br0450A,
- Br0451W, Br0490N, Br0600A, By0424A, By0425W, By0604A,
- Id0452A, Id0502A, Id0602A, Id0606A, Ir0520A, Iy-0524A,
- Iy-1004A, Iy0454A, Iy0504A, Iy0524A, Iy0604A, Iy0606A,
- Iyp0504A, Jd0422A, Jd0452A, Jd0602A, Jr0420A, Jr0450A,
- Jr0600A, Jy0424A, Jy0454A, Jy0604A, Qc0708A, Qd0422A,
- Qd0422Ap, Qd0452A, Qd0452Ap, Qd0602A, Qd0602Ap, Qf0806A,
- Qr0420A, Qr0420Ap, Qr0450Ap, Qr0600Ap, Qy0424A, Qy0424Ap,
- Qy0454A, Qy0454Ap, Qy0604Ap, Qy0605W, Rfc0985, Sd0422A,
- Sd0422Ap, Sd0452A, Sd0452Ap, Sd0502A, Sd0502Ap, Sd0602A,
- Sd0602Ap, Sf0906A, Sn0958A, Sr0420A, Sr0420Ap, Sr0421Wp,
