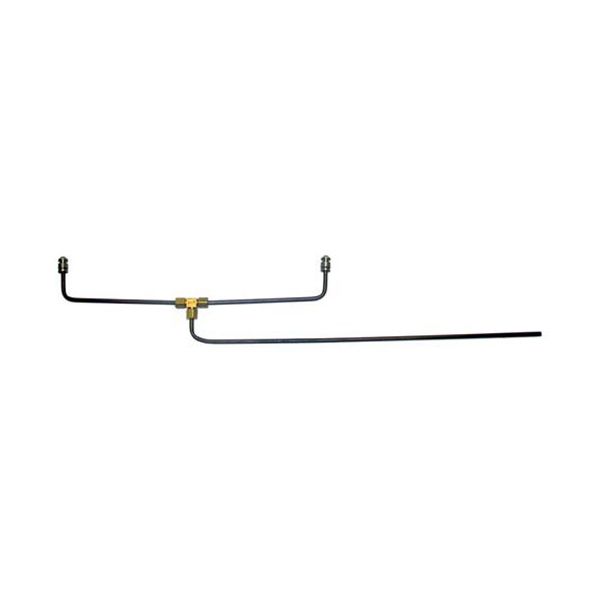

Imperial 21070 Pilot Assembly 3/16" Tubing 12-15/16" CTR Of Tips 12-1/2" X 2-1/2" L

Rating:
5 5 2
2  Reviews Add Your Review
£69.76
In stock
SKU
21070
Add to Wish List
Griddle & Grill Parts, Pilot Assembly, Shop by manufacturers
Manufacturer:
The Imperial 21070 Pilot Assembly is a gas ignition part that is used in commercial cooking equipment to provide a constant pilot flame that is used to ignite main burners when the equipment is in operation. It is connected with the assistance of 3/16 inch tubing and the flame is placed in the correct position with the support of its centred tip layout to allow the correct combustion of the gas. The assembly is commonly found in other such appliances and is vital in ensuring that the burner starts up and that the heat is safely controlled.

Dimensions

  • Length: 1.27 cm
  • Width: 5.08 cm
  • Height: 32.385 cm
  • Weight: 0.136 kg
https://partsfe.com/media/catalog/product/i/m/imperial-21070-pilot-assembly-3-16-tubing-12-15-16-ctr-of-tips-12-1-2-x-2-1-2-l-53589-2.jpg

Product Notes

  • Pilot Assembly, 3/16" Tubing, 12-15/16" Ctr Of Tips,
  • 12-1/2" X 2-1/2" L Tube Connected To 2 Tip Tubes,
  • 2Ea 6-1/4" X 1-3/8" With Tips Make Up The 12-15/16" Above
  • With 3/16" Tee, Also Has Nut & Sleeve.
  • Imperial Range Ir, Elite
  • For Ir2000 Series Use A3922, # 51-1070, Assy.
  • Which Is 6" Tip Centers.
More Information
Disable SaleableYes
Reviews 2
Write Your Own Review
You're reviewing:Imperial 21070 Pilot Assembly 3/16" Tubing 12-15/16" CTR Of Tips 12-1/2" X 2-1/2" L
Your Rating
FAQS
Customer Questions
No Questions
Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off the gas supply completely and ensure the appliance is cool.

Step2: Remove the existing pilot assembly carefully, keeping tubing and fittings intact.

Step3: Install the new pilot assembly, aligning all tubing and connections correctly.

Step4: Tighten fittings securely without over-torquing to avoid damage.

Step5: Test pilot ignition and inspect for leaks before returning the appliance to normal operation.
