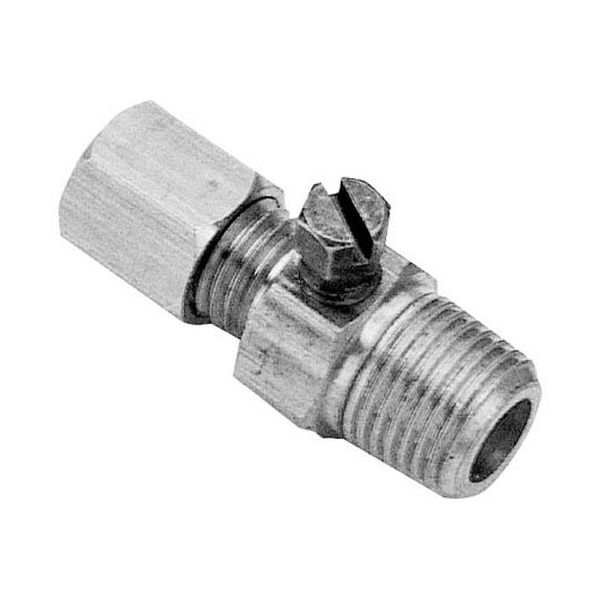

Imperial 1607 Charbroiler Pilot Adjustment Valve1/8" MPT X 3/16" CCT
£7.52
In stock
SKU
1607
Manufacturer:
The Imperial 1607 Pilot Adjustment Valve is a control element that is applied to adjust the pilot gas flow in commercial charbroilers. It is placed between the gas supply and the pilot burner to enable a fine control of the pilot flame to enable ignition and stable operation of the burner. The valve has a 1/8 inch male pipe thread inlet and a 3/16 inch compression outlet and can be used with standard gas line configurations. In regular application, it ensures that there is consistent heat regulation and better start-up operation in the charbroiler gas system.
Dimensions
- Length: 1.27 cm
- Width: 1.905 cm
- Height: 3.81 cm
- Weight: 0.045 kg
Product Notes
- Pilot Adjustment Valve
- [ 1/8" Mpt X 3/16" Cct ] ] [Width 1-1/8"],
- Straight, Adjustable
- American Range
- Bakers Pride Broiler Ch10. Series: 50, Gg, Xx.
- Dynamic Cooking Systems Broiler Cheesemelter, Salamander.
- Garland Oven 60/40R, Stw286 & Where Applicable.
- Griddle Series: Gd
- Imperial Broiler Eba-3223. Series: Gd, Icb, Icma, Isb, Msq.
- Grill Series: Imga, Itg.
- Range Series: Icra, Isp-J, Ispa.
- Wolf Broiler Cmss Cheesemelter, Fshb & Hbss
- (Old F & Fs-855), Scb.
- Grill Gg, Stg.
