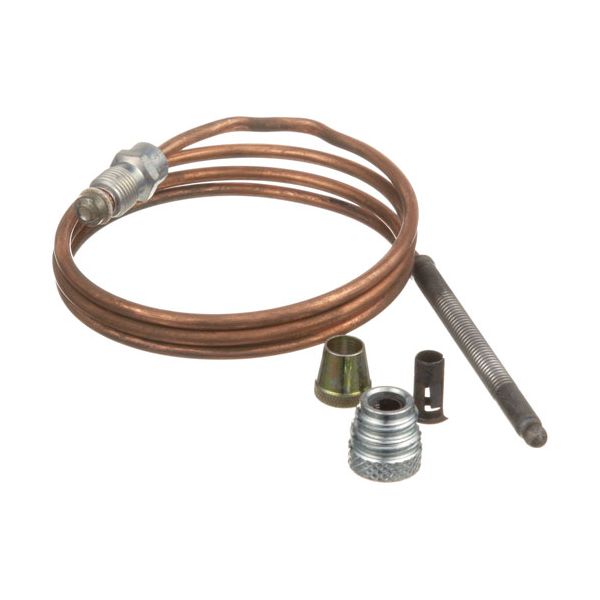

Imperial 1138 Oven Thermocouple 30"
Special Price £18.82 Regular Price £28.75
In stock
SKU
1138
Manufacturer:
The Imperial 1138 Oven Thermocouple is an element of temperature detection that is applied in a commercial cooking system. It measures 30 inches long and identifies the presence and temperature of the burner flame and provides a corresponding electrical signal to the control system. It is installed close to the burner or pilot assembly, and it provides continuous feedback to make sure that the ignition is secure, and the operation is correct. It is used in the appliance to assist in flame sensing and temperature control so that the control system can control the heat to the right level.
Dimensions
- Length: 14.605 cm
- Width: 12.7 cm
- Height: 1.27 cm
- Weight: 0.045 kg
Product Notes
- 1970 Series, 30" Thermocouple, 20-30 Mv
- Coaxial Thermocouple Threads = 11/32"-32.
- Imperial Oven Series: Ihr & Ir W/Standard Oven.
- Montague Oven 28, 28Cbsf, 136, V136, Vg26.
- Series: G, Montague Ii R.
