Hatco 02.12.003B Blower Motor Kit 120V
Special Price £343.14 Regular Price £700.00
In stock
SKU
02.12.003B
Manufacturer:

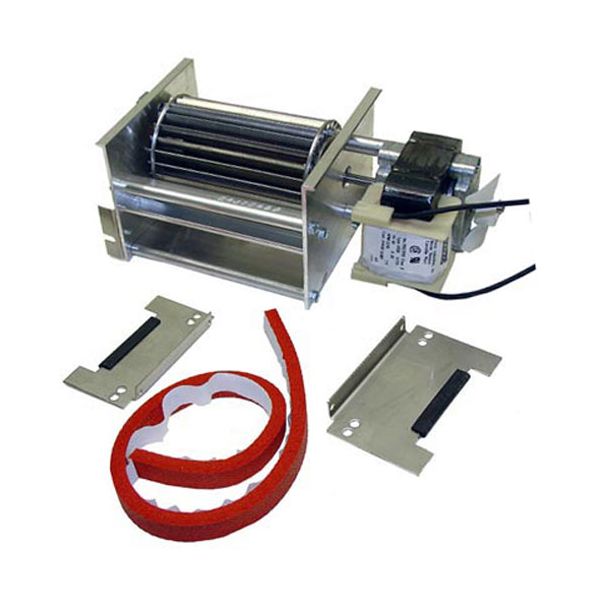

The Hatco 02.12.003B Blower/Motor Assembly works by taking air through the parts with the use of an electric motor at 120V. This assembly is fitted in compatible units, which are usually fitted in the internal blower compartment where airflow channels are laid. Electrical connections are connected to the existing wiring to regulate the operation of the motors. The assembly is usually installed as a replacement or service part to re-establish normal air circulation in commercial warming or ventilation systems.
Dimensions
- Length: 25.4 cm
- Width: 16.002 cm
- Height: 16.51 cm
- Weight: 1.996 kg
Product Notes
- Motor / Blower Assembly W/ Hardware For Units Made
- Before June 1998. Hardware Is Conversion Kit To Mount
- This Motor Assembly.
- Dimensions: Overall Width (Incl Motor)- 8-3/4".
- Blower Assy Only - 5-1/4" X 4-1/4" X 3-3/8"
- Blower Wheel - 4" X 2-3/8"
- Same As # 68-1132 But Added Hardware For Conversion
- Of Old Style Units. Used On Units B4 6/98 - Std Wattage
- Cabinets Rated 1725W.
- Units Made From June 1998 To Present Use Motor Assenbly
- # 68-1132.
- Hatco
- Warmer Series: Fs, Fshc, Fst, Wfst.
