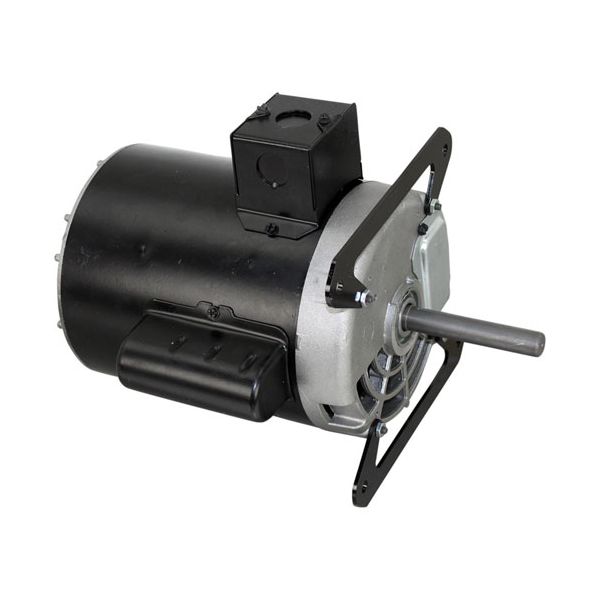

Garland GL1686701 Blower Motor .75/.21HP 115V/1PH
Special Price £200.45 Regular Price £308.86
In stock
SKU
GL1686701
Manufacturer:
The Garland GL1686701 Blower Motor .75/.21HP 115V/1PH is a mechanical part that is used to system to control the movement of components of commercial cooking equipment. It pushes appliance or other moving objects, which enables the users to have the right circulation and operation in the appliance. It is a system assembly and operations in collaboration with other parts to aid the proper of the motor, and controls elements that it maintains a consistent mechanical performance. The motor in keeping the internal processes of the appliance at an optimum level by converting electrical input into rotational movement system.
Dimensions
- Length: 38.735 cm
- Width: 26.67 cm
- Height: 26.67 cm
- Weight: 11.34 kg
Product Notes
- Blower Motor, 2 Speed.
- [ 115V, ] [ .75/.21 Hp, ] [1Ph ] [1725/1140 RPM ]
- [9.8/4.2 Amp ] [Cw Rotation ] [ 3-3/4" X 5/8" Shaft ]
- [ Y56Y Frame ] [ 6-3/16" X 6-3/16" Mtg. Brkt. ]
- Qty 4 Outside 5/16" Holes, On Each Bracket 2 Holes Are
- 6-3/16" On Centers And From Bracket To Bracket Also 6-3/16"
- Centers. Inside Bracket Mount Studs Are 3/16" Studs And Are
- Spaced On 4" Centers Bracket To Bracket And On Each Bracket
- They Are Spaced 4.097"
- Garland Blower Wheel # 26-1464
- Us Range Blower Wheel # 26-1464
- Garland Oven Mcogs, Mcogd, Icog, Ecog, Icog,.
- Tim Ortons Spritzer,
- Us Range Oven Models Sge100, Sgm100, P1-G-10D, Cg100, Sdg,
- Sumg-100
