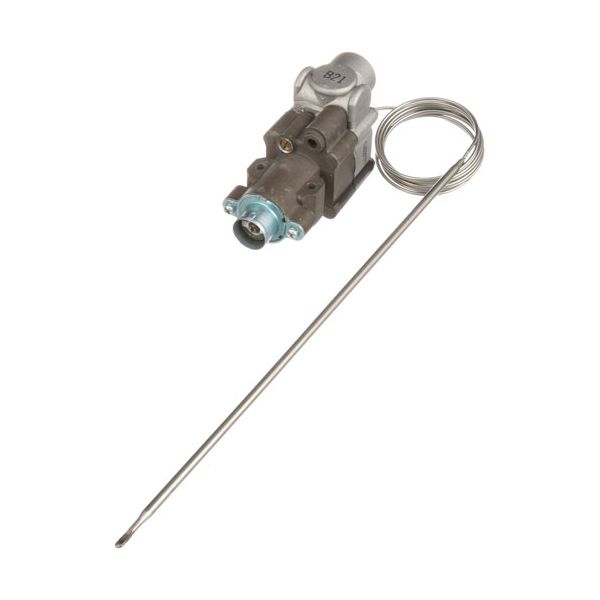

Garland 1086700 Range Thermostat BJWA GV
Special Price £190.45 Regular Price £293.46
In stock
SKU
1086700
Manufacturer:
Garland 1086700 Thermostat BJWA GV is an element that is used to control the temperature in commercial cooking ranges. It works by detecting the heat and activating the electrical circuit to control the heating components to ensure that the cooking conditions are proper. It used in controlled delivery of heat and prevents other parts of the machine to be exposed to too much heat by regulating the temperature changes. This snap-action thermostat reacts fast to changes, in proper operation of the cooking surface, and used in stable operation during cooking cycles, and communicates with the control circuitry of the system to keep the desired operation sequence.
Dimensions
- Length: 5.08 cm
- Width: 15.558 cm
- Height: 3.493 cm
- Weight: 0.318 kg
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- Bjwa T~
- Stat, Outlet 3/8" For 7/16 Cct "C" Rear,
- If Required Order #262183 Adapter 3/8"Npt To 7/16"Cct
- Rotation 0 Degrees, Temp 250-550, Cap 48",
- Bulb 3/16 X 11 3/16, (Dial Not Included).
- Gen Use Dial # 22-1029 Off-Low-250-500
- [ 2" Dia ] [ Off-Low-250-500] [Mount .240]
- [Position 4 Way], W/ Adapter # 26-1197
- For Bj Kits See # 46-1053 Or # 46-1054
- Garland Oven Px624Bg (Standard Oven).
- Series: G30A (Prior To 2/82).
- Us Range Oven Model: S102626, Series: Px, Sunfire S Series
