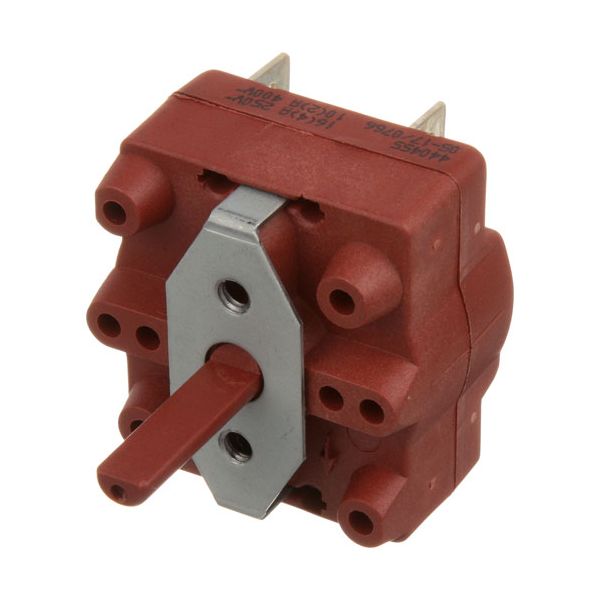

Duke 600541 Oven 3 Heat Switch Rotary Switch W/ 6 Term, D Stem & .150" Flat Down

1  Review Add Your Review
Special Price £175.56 Regular Price £346.00
In stock
SKU
600541
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Duke 600541 3 Heat Switch is used for heat regulation in ovens without mechanical contacts which can fail. It has three heat levels and is capable of handling 20A at 120-240 volts. It has 6 terminals and a D stem with a .150” flat-down that makes it easy to install and operate. This product is suitable for Duke 6/13 Oven E Series and Tomlinson Kettles; the #22-1106 pointer knob or #22-1291 knob is recommended for this product. It gives optimal calibration for temperature and strength thereby making it vital within cookery processes.

Dimensions

  • Length: 5.398 cm
  • Width: 5.08 cm
  • Height: 4.128 cm
  • Weight: 0.059 kg
https://partsfe.com/media/catalog/product/d/u/duke-600541-oven-3-heat-switch-rotary-switch-w-6-term-d-stem-150-flat-down-57935-2.jpg

Product Notes

  • Rotary Switch, 3 Heat, 20A-120-240V, 6 Term,
  • D Stem .150" Flat Down
  • For Pointer Knob Use # 22-1106
  • Duke 6/13 Oven E Series
  • Tomlinson Glenray Kettle Use Knob # 22-1291
DUKE:
153460, 600541, DUK153460
Reviews 1
Write Your Own Review
You're reviewing:Duke 600541 Oven 3 Heat Switch Rotary Switch W/ 6 Term, D Stem & .150" Flat Down
Your Rating
FAQS
Customer Questions
No Questions
Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the power to the oven.

Step2: Remove the old rotary switch from the panel.

Step3: Disconnect all wiring carefully.

Step4: Inspect the panel for damage or corrosion.

Step5: Install the new rotary switch in the same panel cutout.

Step6: Reconnect wiring according to the diagram.

Step7: Test rotation to ensure smooth switching.

Step8: Replace the panel cover and verify appliance operation.
