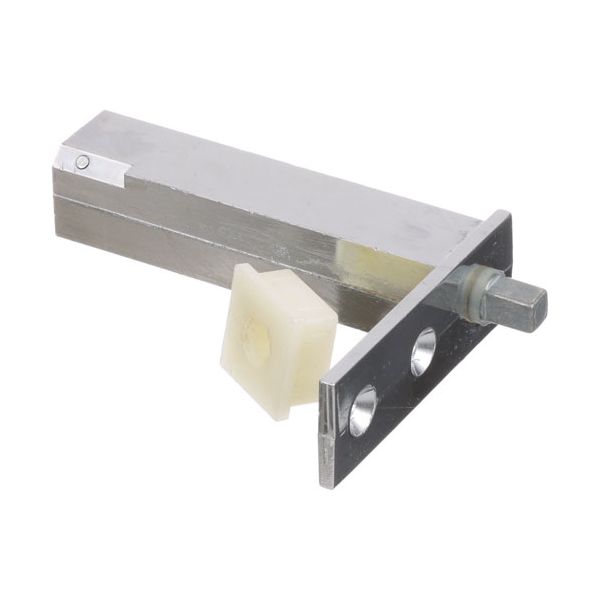

Delfield 3230010 Concealed Cartridge Hinge

Rating:
5 5 6
6  Reviews Add Your Review
Special Price £28.08 Regular Price £59.00
In stock
SKU
3230010
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Delfield 3230010 Concealed Cartridge Hinge is a hidden fixing element that assist to provide the opening and closing action of the access panels and doors in commercial equipment assemblies. It works by keeping the door and frame in proper alignment and supporting easy pivot motion when it is used normally. This hinge is applied in service areas where the appearance of a flush exterior and controlled movement is needed, such as systems that are frequently accessed in the regular running of the system. It is installed in the door framework and assist to maintain the steady operation.

Dimensions

  • Weight: 0.283 kg
https://partsfe.com/media/catalog/product/d/e/delfield-3230010-concealed-hinge-w-extended-pin-60913-2.jpg
Manufacturer Name: Delfield
Product Number: 3230010
OEM Part Number: 3230010
Product Description: Concealed Hinge, W/Extended Pin, No Stop.;Reversible Cartridge;Delfield 4427N, 4427N-6, 4427N-9M, 4432N, 4432N-12M, 4448N,;4448N-12, 4448N-18M, 4448N-8, 4460N, 4460N-12, 4460N-12M,;4460N-18M, 4460N-24M, 4460N-8, 4462N-18M, 4464N, 4464N-12,;4464N-12M, 4464N-16, 4464N-24M, 4464N-30M, 4464N-8, 4472N,;4472N-12, 4472N-18M, 4472N-24M, 4560N, 6025Xl-S, 6025Xl-Sh,;6051Xl-S, 6051Xl-Sh, 6076Xl-S, 6076Xl-Sh, 6125Xl-S,;6125Xl-Sh, 6151Xl-S, 6176Xl-S, 6176Xl-Sh, D4427n, D4432n,;D4448n, D4448n-18M, D4460n, D4464n, D4472n, St4427n,;St4432n, St4448n, St4460n, St4464n, St4472, St4472n,;St4560n, Std4427n, Std4432n, Std4448n, Std4460n, Std4464n,;Std4472n, Uc4048, Uc4148, Uc4427n, Uc4432n, Uc4448n,;Uc4460n, Uc4464n, Uc4472, Uc4472n, Uc4560n, Ucd4427n,;Ucd4432n, Ucd4448n, Ucd4460n, Ucd4464n, Ucd4472n
Similar Models:000BFW0030 - Delfield, 3234225 - Delfield, 3237509 - Delfield, 3237516 - Delfield, 3237516S - Delfield, 3237516-S - Delfield
Dimensions:
Length:4.625in/11.75cm
Width:3in/7.62cm
Height:1in/2.54cm
Weight:0.5lbs/226.8g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe UK!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at +44 2921680023 or contact@partsfe.co.uk

Replaces Parts
DELFIELD:
000BFW0030, 3230010, 3234225, 3237509, 3237516, 3237516-S, 3237516S, DEL3230010, DEL3234225, DEL3237509, DEL3237516, DEL3237516-S, DEL3237516S
Reviews 6
Write Your Own Review
You're reviewing:Delfield 3230010 Concealed Cartridge Hinge
Your Rating
FAQS
Customer Questions
No Questions
Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Open the door and support it securely to prevent movement.

Step2: Remove the old hinge by unscrewing it from the door and frame.

Step3: Align the new concealed hinge with the mounting holes.

Step4: Secure the hinge with screws, ensuring the extended pin fits properly.

Step5: Check door alignment and adjust hinge position if necessary.

Step6: Test the door for smooth opening and closing, confirming stability.
