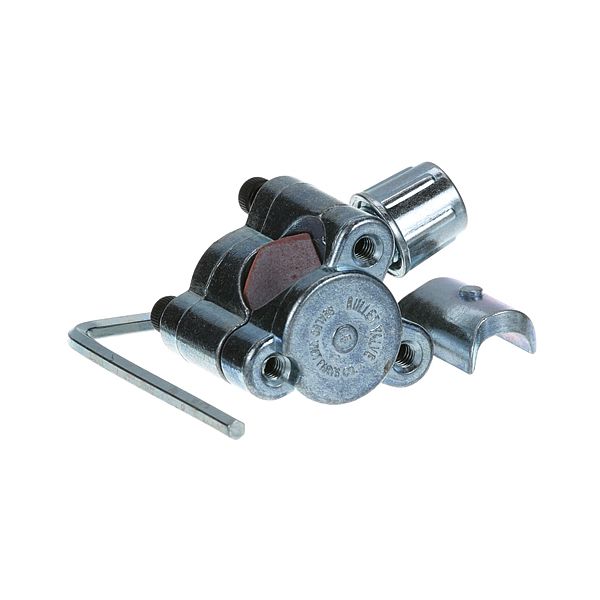

Allpoints 561383 Bullett Piercing Valve

Product Notes

• Bpv Series Bullet® Piercing Valves
• Fits O.D. Tubing Size 1/2" And 5/8".
• Utilizes The Same Type Of Gasket Found Under The Head Of
• Most Air Conditioning Compressors.
• When Installed, The Gasket Compresses The Copper Tubing
• .020" Creating A Permanent, Leakproof Seal That Will
• Withstand Any Pressure And Temperature For The Life Of The
• Unit. Patented Valve Gasket Application Provides 50 Times
• More Sealing Area Than Competitive "O" Ring Types.
• A Sealing Force Of Over 180" Lbs., Torque Tested With 500
• Lbs., Pressure Tested At 250°F. Precision Piercing
• Needle Is Engineered For Concentricity And Hardness To
• Insure Perfect Seating Every Time. Non-Positional - No
• Adapter Valve Required. Requires Only A 2" Clearance Area
• For Installation And Operation. Hex Key Wrench Included.
