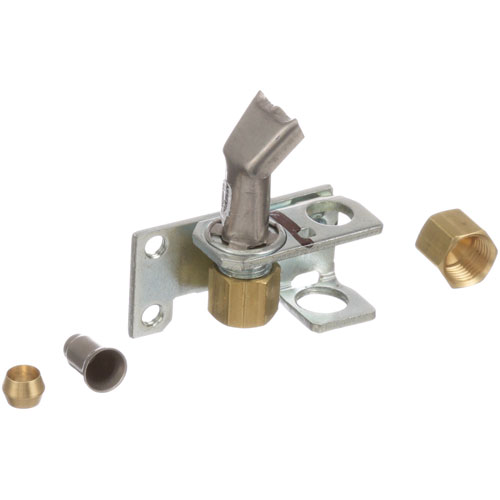

Garland 1028299 Oven Pilot Burner Assembly Natural Gas

SKU: 1028299 3-1028299 Brand:
Garland
Availability:
Out of Stock
(1)
£29.55 Price reduced from £58.65
Save £29.10
Have a Question? +44 2921680023

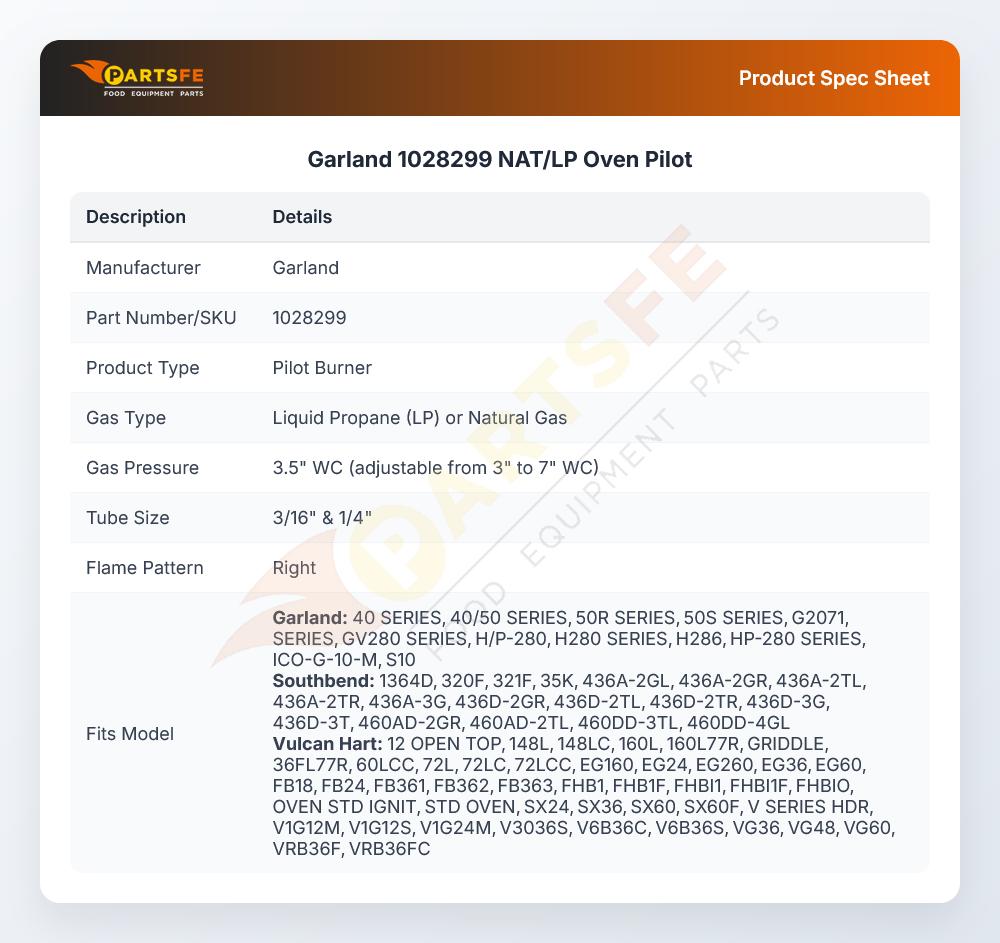

Specifications:

  • Nat/Lp Pilot, Factory # 2Ch-10, 1830-115, 1830-500,
  • Tube Size 3/16" & 1/4", Flame Pattern Right
  • Garland Oven Series: Bco, Eco, G48P, G2000, Ico.
  • Southbend Oven 321D After 1982 (1982 & Prior Use Oem #
  • 1164282).Series: 136 & 142 W/Suffix C Or D But W/O Co
  • Prefix, 300 W/F Suffix.
  • Us Range Oven Series: Performer Ii (Right Side) W/Standing
  • Pilot.(Units W/Electronic Pilot Use M-214)
  • Vulcan Hart Oven 260L-77R, 319A-77R, 399A-77R, Series: Eg,
  • Vg.Sg-60L-77R, Sg-260L-77R.24L, 48L, 481L/Lc, 148L/Lc,
  • 36L/Lc, 60L/Lc/Lcc 160L/Lc, 260L/Lc/Lcc
  • Wolf Model?

Description

The Garland 1028299 Pilot Natural Gas/LP is a spare part that is used to create and sustain a small pilot flame needed to ignite burners in an oven gas system. It will be compatible with natural gas and liquid propane and installed with various fuel sources. The pilot assembly is placed close to the burner, whereby the constant presence of flames aids proper ignition in cases where heat is demanded. This section is installed when equipment is being assembled in the service conditions to assist in proper start-up sequencing.

Dimensions:

  • Weight: 0.09 kgs
  • Length: 5.08 cm
  • Height: 1.91 cm
  • Width: 5.08 cm

FRYMASTER:

810-2403 8102403

GARLAND:

1028200 1028297 1028298 1091898 1091899 11769-2 11769-2 (GARLAND) 227198 227198-1 GL1028299 GL11769-2 GL11769-2 (GARLAND)

HOBART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00001 412787-00002 412787-1 412787-2

SOUTHBEND:

1163869 1163870 SOU1163869 SOU1163870

U-LINE:

1830-115 1830-11E

VULCAN HART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00001 412787-00002 412787-1 412787-2 VH109839-6 VH112787-1 VH112787-2 VH409839-6 VH412787-1 VH412787-2

Step1: Turn off the gas supply and disconnect electrical power to the oven.

Step2: Remove the access panel to reach the existing pilot assembly.

Step3: Disconnect the tubing and wiring from the old pilot carefully.

Step4: Mount the new pilot in the same location and reconnect all connections securely.

Step5: Replace the panel, restore gas and power, then test ignition and flame operation.
