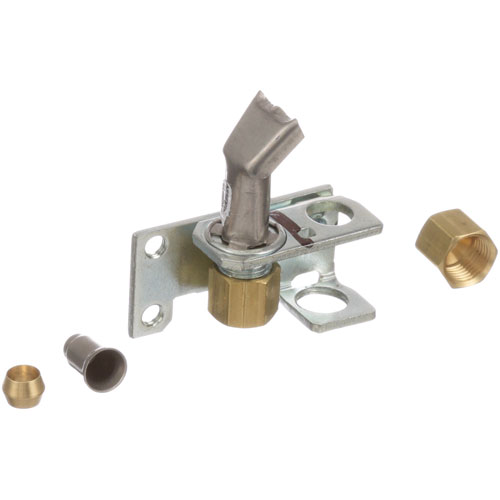

Garland 1028298 Oven Pilot Burner Propane

SKU: 1028298 3-1028298 Brand:
Garland
Availability:
Out of Stock
(0)
£29.55 Price reduced from £58.65
Save £29.10
Have a Question? +44 2921680023

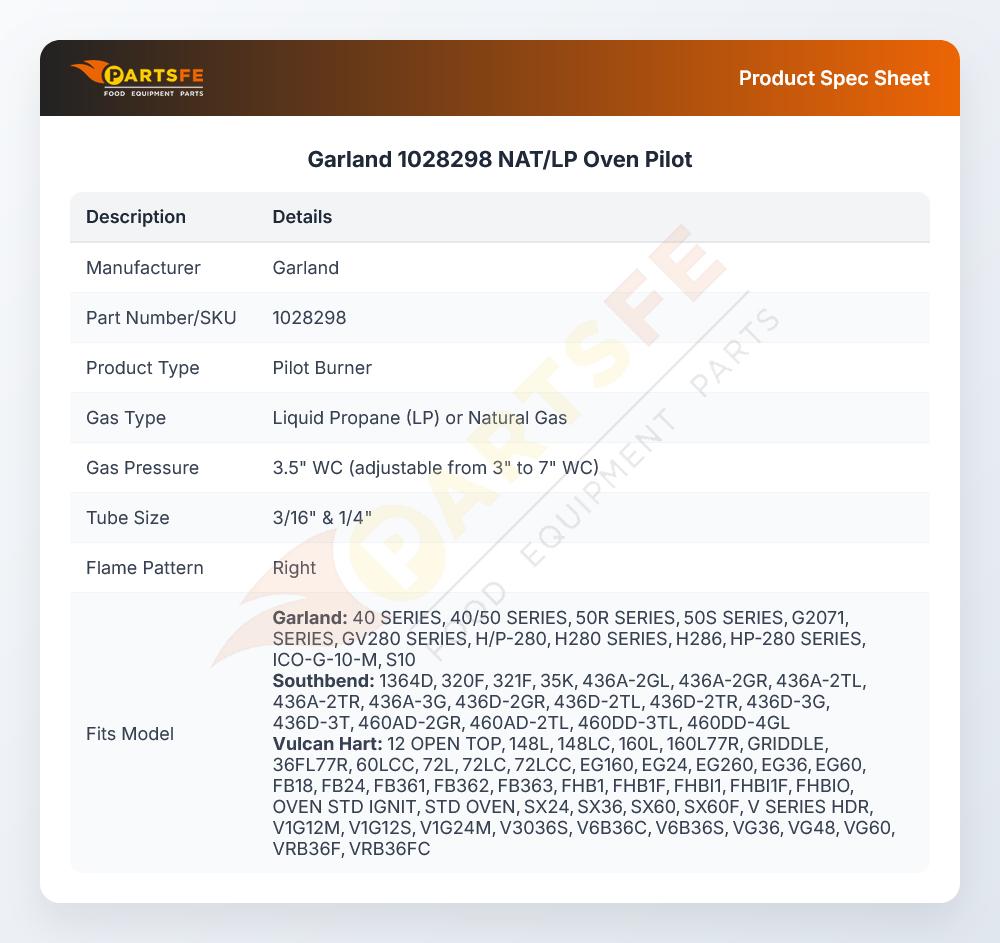

Specifications:

  • Nat/Lp Pilot, Factory # 2Ch-10, 1830-115, 1830-500,
  • Tube Size 3/16" & 1/4", Flame Pattern Right
  • Garland Oven Series: Bco, Eco, G48P, G2000, Ico.
  • Southbend Oven 321D After 1982 (1982 & Prior Use Oem #
  • 1164282).Series: 136 & 142 W/Suffix C Or D But W/O Co
  • Prefix, 300 W/F Suffix.
  • Us Range Oven Series: Performer Ii (Right Side) W/Standing
  • Pilot.(Units W/Electronic Pilot Use M-214)
  • Vulcan Hart Oven 260L-77R, 319A-77R, 399A-77R, Series: Eg,
  • Vg.Sg-60L-77R, Sg-260L-77R.24L, 48L, 481L/Lc, 148L/Lc,
  • 36L/Lc, 60L/Lc/Lcc 160L/Lc, 260L/Lc/Lcc
  • Wolf Model?

Description

The Garland 1028298 Oven Pilot Burner Propane is a gas ignition part that is utilized to sustain a constant pilot flame in a commercial system. This component provides a steady supply of ignition, which is used to start the main burner when the flow of gas is controlled by the system, which assist to ensure that the necessary amount of heat is produced during operation. It is applied in commercial kitchen equipment, where better and more accurate cooking processes need controlled ignition.

Dimensions:

  • Weight: 0.09 kgs
  • Length: 5.08 cm
  • Height: 1.91 cm
  • Width: 5.08 cm

This Part Fits the Following Models

100 models
Garland 40 SERIES Garland 40/50 SERIES Garland 50R SERIES Garland 50S SERIES Garland G2071 Garland G2121 Garland G2161 Garland G2161-121 Garland G2161-71 Garland G2161-771 Garland G2171-771 Garland G2771 Garland G280 SERIES Garland G286 Garland G30A SERIES Garland GV280 SERIES Garland H/P-280 Garland H280 SERIES Garland H286 Garland HP-280 SERIES Garland ICO-G-10-M Garland S-10 Garland S-10-26 Garland S-10-2626 Garland S-10-2626CP Garland S-10-26CP Garland S-10-26CP26CP Garland S-24BG-2626CP Garland S-4 Garland S-4-20 Garland S-6 Garland S-6-24BG-26 Garland S-6-24BG-2626 Garland S-6-24BG-2626CP Garland S-6-24BG-26CP Garland S-6-24BG-26CP26CP Garland S-6-26 Garland S-6-26CP Garland TG3 Southbend 1364D Southbend 320F Southbend 321F Southbend 35K Southbend 36N-XX Southbend 424E Southbend 4361D Southbend 436A Southbend 436A-1GL Southbend 436A-2GL Southbend 436A-2GR Southbend 436A-2TL Southbend 436A-2TR Southbend 436A-3G Southbend 436A-3T Southbend 436D Southbend 436D-1GL Southbend 436D-2GL Southbend 436D-2GR Southbend 436D-2TL Southbend 436D-2TR Southbend 436D-3G Southbend 436D-3T Southbend 448EE Southbend 448EE-2GL Southbend 448EE-2GR Southbend 448EE-2TL Southbend 448EE-2TR Southbend 448EE-3GL Southbend 448EE-3GR Southbend 448EE-3TL Southbend 448EE-3TR Southbend 448EE-4G/T Southbend 448EE-HH Southbend 460AA Southbend 460AA-2GL Southbend 460AA-2GR Southbend 460AA-2RR Southbend 460AA-2TL Southbend 460AA-2TR Southbend 460AA-3GL Southbend 460AA-3GR Southbend 460AA-3TL Southbend 460AA-3TR Southbend 460AA-4GL Southbend 460AA-4GR Southbend 460AA-4TL Southbend 460AA-4TR Southbend 460AD Southbend 460AD-2GL Southbend 460AD-2GR Southbend 460AD-2TL Southbend 460AD-2TR Southbend 460AD-3GL Southbend 460AD-3GR Southbend 460AD-3TL Southbend 460AD-3TR Southbend 460AD-4GL Southbend 460AD-4GR Southbend 460AD-4TL Southbend 460AD-4TR
Showing of 100.0

FRYMASTER:

810-2403 8102403

GARLAND:

1028200 1028297 1028299 1091898 1091899 11769-2 11769-2 (GARLAND) 227198 227198-1 GL1028299 GL11769-2 GL11769-2 (GARLAND)

HOBART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00001 412787-00002 412787-1 412787-2

SOUTHBEND:

1163869 1163870 SOU1163869 SOU1163870

U-LINE:

1830-115 1830-11E

VULCAN HART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00001 412787-00002 412787-1 412787-2 VH109839-6 VH112787-1 VH112787-2 VH409839-6 VH412787-1 VH412787-2

Step1: Shut off oven gas supply before starting.

Step2: Access the pilot assembly area.

Step3: Disconnect old pilot tubing and fittings.

Step4: Remove and replace with the new pilot unit.

Step5: Reconnect gas line securely.

Step6: Turn gas on and test pilot ignition and flame stability.
