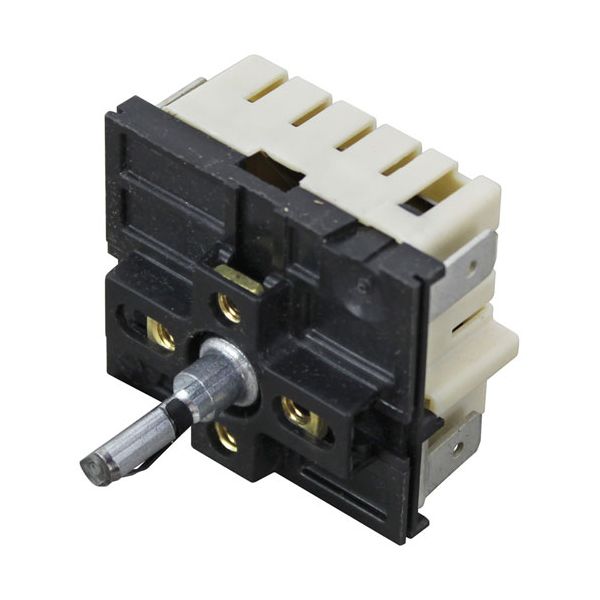

Bloomfield 2E-30570 Infinite Switch 15A 120V
Special Price £29.92 Regular Price £38.86
In stock
SKU
2E-30570
Manufacturer:
The Bloomfield 2E-30570 Infinite Switch 15A 120 V is a temperature control system that is installed in electric commercial cooking equipment to control the amount of heat produced. It has a 15 amp rating at 120 volts, and it provides variable control by increasing or decreasing the amount of power delivered to heating elements in a continuous range instead of in discrete steps. The switch is installed on the back of the control panel of the appliances and communicates with the knob of the user to convert the position of the dial into the amount of heat.
Dimensions
- Length: 5.715 cm
- Width: 4.445 cm
- Height: 4.445 cm
- Weight: 0.091 kg
Product Notes
- 120V/15A )( Infinite ), Terminal( 5~
- 1/4" Tab~
- L1,L2(Line),P(Pilot),H1,H2(Load) )~
- Contacts( N.O. )'
- Style( Rotary )~
- Markings( 1-10 ) Shaft( 3/16" Od~
- 3/4" Long~
- .187" Flat Up ) 4 Screw Mt.
- Wells Knob Off-Lo-2-3-4-5-6-7-8-Hi # 22-1073 (Flat Up)
- Bloonfield Model?
- Delfield
- Warmer Series: 8300. Taco Bell & Kfc Units.
- Wells Warmer H33, Hw/Smp, Mod (All), Smp, Smpt, Ss4, Ss8,
- Ss10-4, Ss10-8, Ss10-10Ul, Sw8, Sw10-T, Tmp.
- Hotplate H(65,70,115)
