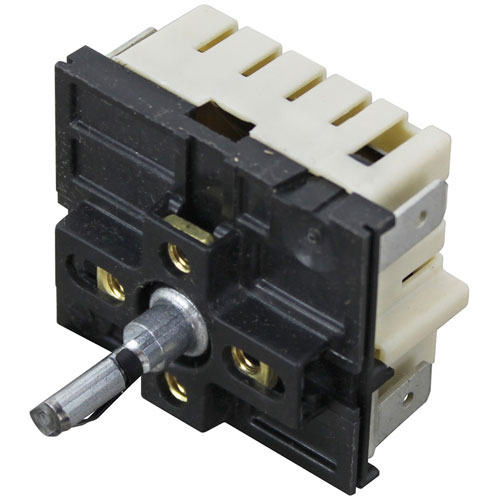

Star Mfg 2E-Z21556 Infinite Switch 15A 120V

SKU: 2E-Z21556 3-2E-Z21556 Brand:
Star Mfg
Availability:
Out of Stock
(0)
£29.92 Price reduced from £38.86
Save £8.94
Have a Question? +44 2921680023

Specifications:

  • 120V/15A )( Infinite ), Terminal( 5~
  • 1/4" Tab~
  • L1,L2(Line),P(Pilot),H1,H2(Load) )~
  • Contacts( N.O. )'
  • Style( Rotary )~
  • Markings( 1-10 ) Shaft( 3/16" Od~
  • 3/4" Long~
  • .187" Flat Up ) 4 Screw Mt.
  • Wells Knob Off-Lo-2-3-4-5-6-7-8-Hi # 22-1073 (Flat Up)
  • Bloonfield Model?
  • Delfield
  • Warmer Series: 8300. Taco Bell & Kfc Units.
  • Wells Warmer H33, Hw/Smp, Mod (All), Smp, Smpt, Ss4, Ss8,
  • Ss10-4, Ss10-8, Ss10-10Ul, Sw8, Sw10-T, Tmp.
  • Hotplate H(65,70,115)

Description

The Star Mfg 2E-Z21556 Infinite Switch 15A 120 V is a heat control element that is used in electric commercial cooking systems and permits the heating elements, to be controlled with better accuracy. It provides adjustable power output, which allows for low-to-high settings and allows for the smooth adjustment of the temperature during cooking. This switch is normally mounted behind the control panel of the appliance, which is linked to the heating element to switch current flow based on the user's selection of the user. It provides a consistent performance in the system, which promotes secure operation.

Dimensions:

  • Weight: 0.09 kgs
  • Length: 5.72 cm
  • Height: 4.45 cm
  • Width: 4.45 cm

BLOOMFIELD:

-2E-30570 2E-30570 6710-109 BLM6710-109

MERCO:

50377 50377SP MER50377 MER50377SP

STAR MFG:

-2E-30520 -2E-30570 -50570 -WS-50570 2E-30520 2E-30570 2E30570 2E34594 30570 50570 WS-50570

STERO:

STA2E-Z21556 WEL2E-30570 WEL2E-Z21556 WEL2E30570

U-LINE:

5502-309 INF120-975

VOLLRATH:

6710-109 VOL6710-109

Step1: Disconnect the appliance from its power source before beginning.

Step2: Remove the control panel to access the existing switch assembly.

Step3: Label and disconnect the wires from the old switch terminals.

Step4: Install the new switch in the same position and secure it firmly.

Step5: Reassemble the panel, restore power, and test heat control responsiveness.
