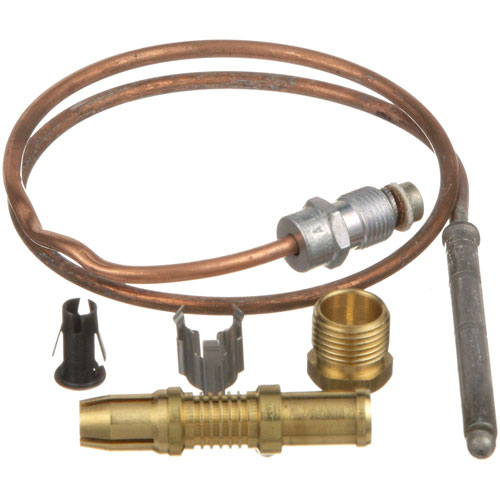

American Range A11100 Range Thermocouple 18" 20-30mV

SKU: A11100 3-A11100 Brand:
American Range
Availability:
Out of Stock
(1)
£23.31 Price reduced from £37.00
Save £13.69
Have a Question? +44 2921680023

Specifications:

  • 1980 Series Snap Fit 18" Thermocouple, 20-30 Mv
  • American Permanent Ware Griddle Ggm, Ggt
  • Comstock Castle Oven Bake, Barbeque & Pizza Ovens.
  • Series: C, D, F, K.
  • Dynamic Cooking Systems Oven All
  • Garland Broiler 6-40/50S, 7-40/50S, 8-40/50S, 60-40/50R
  • Oven Series: H281, P280. Standard Oven From 03/99 In
  • Canada Only, Range: G20-Sph
  • Imperial Model?
  • Star Fryer M14, Mi4 (D,Dl), M18, Mi8(D,Dl), M43, 215B, 216,
  • 403 404
  • Us Range Oven P-4-20.
  • Wolf Oven Ch, Chssd, R

Description

The American Range A11100 Range Thermocouple 18-20 30mV is a temperature-sensing element used to detect the existence of a pilot flame in a gas range, during regular operation. Heated by the pilot flame, it produces a small millivolt electrical signal, which is used by the control system to verify flame status and permit the gas valve to remain open. It is applied in commercial cooking ranges where accurate flame detection is needed to allow safe ignition and further burner operation. The thermocouple is attached next to the pilot flame.

Dimensions:

  • Weight: 0.05 kgs
  • Length: 12.7 cm
  • Height: 1.27 cm
  • Width: 10.16 cm

AMERICAN RANGE:

10485 AMRA11100

ANETS:

ANEP8900-32 P8900-32

APW WYOTT:

1473103 AS-1473103

CECILWARE:

F002A F002F GMF002A GMF002F

COMSTOCK CASTLE:

17005 COM17005 COMT46 T46

DYNAMIC COOKING SYSTEMS:

13007 13007-01

GARLAND:

1019418 1029410 1307401 1415000 227002 227122 227183 4518817 G01575-1 GL1019418 GL1029410 GL1415000 GL227183 GLG01575-1

HOBART:

00-920325 14268 412788-1 714268 920325

IMPERIAL:

1121 30030 IMP1121

JADE RANGE:

460-126-000 4612600000 4620100000

ROYAL RANGE:

2175 2179

SOUTHBEND:

1163868 1683868 SOU1163868 SOU1683868

STAR MFG:

2J-6726 2J6726 6726 H456

STERO:

STA2J-6726 STA2J6726 STA6726 STAH456

TRI-STAR:

310210 TRS310210

U-LINE:

1980-018

VULCAN HART:

00-920325 14268 412788-1 714268 920325

Step1: Turn off the gas supply and disconnect power to the appliance.

Step2: Remove the old thermocouple from the pilot assembly.

Step3: Inspect the pilot bracket and gas fittings for wear or corrosion.

Step4: Insert the new thermocouple into the pilot flame bracket.

Step5: Secure it with the mounting screw provided.

Step6: Attach the thermocouple nut to the gas valve inlet.

Step7: Turn on gas and test the pilot flame to ensure proper detection.

Step8: Confirm the thermocouple shuts off gas when the flame goes out.
