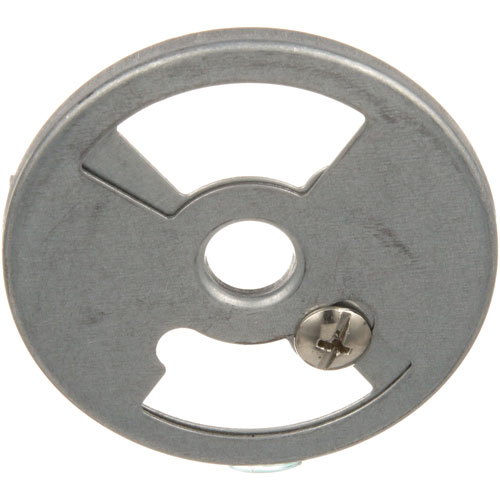

Vulcan Hart VH404060-3 Range Burner Air Shutter Double Plate Cast Iron 2-1/2" OD

SKU: VH404060-3 3-VH404060-3 Brand:
Vulcan Hart
Availability:
Out of Stock
(0)
£7.06
Have a Question? +44 2921680023

Specifications:

  • 2-3/4" Od Air Shutter For Cast Iron Burner,
  • Type Double Plate, 2 Slots, Fits Burner 2-1/2" Dia,
  • 7/16" Hole Size, W/ Locking Ears.
  • For Same W/ Larger 9/16" Hole Use # 26-1515 Air Shutter.
  • Rankin-Delux Series Drb, Rb-8
  • Vulcan Vccb
  • Wolf Broiler Scb
  • Grill
  • Oven F, Fs, R, Wtr

Description

The Vulcan Hart VH404060-3 Burner Air Shutter Double Plate, is an essential part that is used to control the air-to-fuel ratio in commercial gas ranges. It is 2-1/2" OD, which provides effective combustion and stable flame performance through regulating the airflow to the burner. It is usually installed during assembly or maintenance and is vital in ensuring the heat output and efficiency are maintained. It is compatible with a range of commercial systems and allows proper cooking performance and preventing uneven heating or disruptions in the operation of high-volume kitchen settings.

Dimensions:

  • Weight: 0.07 kgs
  • Length: 2.51 cm
  • Height: 0.31 cm
  • Width: 2.5 cm

This Part Fits the Following Models

100 models
Vulcan Hart 12 Vulcan Hart 24S Vulcan Hart 24-S-4B Vulcan Hart 36C Vulcan Hart 36C-6B Vulcan Hart 36S Vulcan Hart 48C Vulcan Hart 48S Vulcan Hart 48SS Vulcan Hart 60 Vulcan Hart 60CS Vulcan Hart 60SC Vulcan Hart 60SS Vulcan Hart 72 Vulcan Hart 72CC Vulcan Hart 72CS Vulcan Hart 72SC Vulcan Hart 72SS Vulcan Hart 848 Vulcan Hart AHP424 Vulcan Hart AHP-636 Vulcan Hart C12 Vulcan Hart C23S-21 Vulcan Hart C24S Vulcan Hart C36C Vulcan Hart C36S Vulcan Hart C48C Vulcan Hart C48S Vulcan Hart C48SS Vulcan Hart C60 Vulcan Hart C60CS Vulcan Hart C60SC Vulcan Hart C60SS Vulcan Hart C72 Vulcan Hart C72CC Vulcan Hart C72CS Vulcan Hart C72SC Vulcan Hart C72SS Vulcan Hart CH Vulcan Hart CHSS Vulcan Hart CONV OVEN Vulcan Hart F Vulcan Hart FB18 Vulcan Hart FB24 Vulcan Hart FB361 Vulcan Hart FB362 Vulcan Hart FB363 Vulcan Hart FK361 Vulcan Hart FK362 Vulcan Hart FK363 Vulcan Hart FM12 Vulcan Hart FM18 Vulcan Hart FM361 Vulcan Hart FM362 Vulcan Hart FM363 Vulcan Hart FS Vulcan Hart FS-4-0-M24 Vulcan Hart FS-6-0-M36 Vulcan Hart FV361 Vulcan Hart FV362 Vulcan Hart FV363 Vulcan Hart G24S Vulcan Hart G36C Vulcan Hart G36S Vulcan Hart G48C Vulcan Hart G48S Vulcan Hart G48SS Vulcan Hart G60 Vulcan Hart G72 Vulcan Hart GH45 Vulcan Hart GH45/72 Vulcan Hart GH45C Vulcan Hart GH60/45 Vulcan Hart GH60/72 Vulcan Hart GH6045C Vulcan Hart GH60T/45 Vulcan Hart GH60T/72 Vulcan Hart GH6T45C Vulcan Hart GH72 Vulcan Hart GH72/45 Vulcan Hart GHM45 Vulcan Hart GHM45/72 Vulcan Hart GHM60/45 Vulcan Hart GHM60/72 Vulcan Hart GHM60T/45 Vulcan Hart GHM60T/72 Vulcan Hart GHM72/45 Vulcan Hart GHX45 Vulcan Hart GHX72 Vulcan Hart GHXM45 Vulcan Hart GHXM72 Vulcan Hart KCH Vulcan Hart KCHSS Vulcan Hart OVEN STD IGNIT Vulcan Hart SCB SERIES Vulcan Hart SCB-24 Vulcan Hart SCB-36 Vulcan Hart SCB-47 Vulcan Hart SCB-60 Vulcan Hart SCB-72
Showing of 100.0

HOBART:

00-719329 19329 719329

MONTAGUE:

2037-0 B25

VULCAN HART:

00-719329 19329 404060-3 719329
