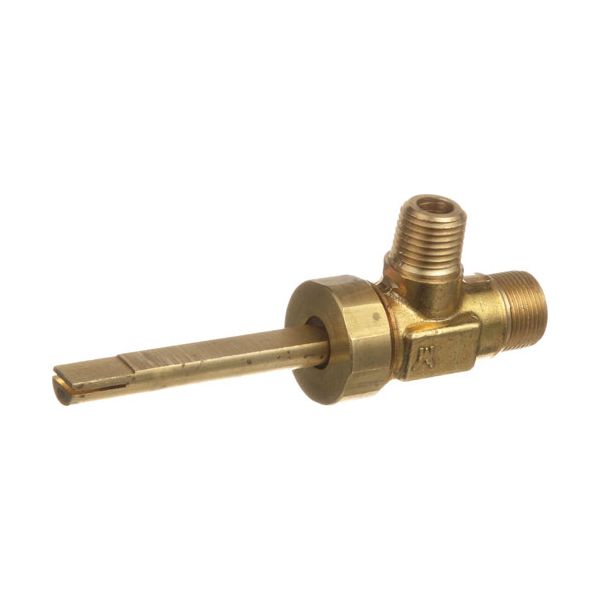

Vulcan Hart 00-408379-00004 Range Top Burner Valve
Special Price £71.89 Regular Price £88.30
In stock
SKU
00-408379-00004
The Vulcan Hart 00-408379-00004 Range Top Burner Valve is a gas-flow valve that is used to manage the amount of gas sent to the burners on a commercial range. It works by varying the position of a needle or other mechanism to control the rate of gas flow into the burner, and can have a high to low flame intensity. This valve is normally fitted behind the control panel and the shaft runs through the front to allow the addition of a knob. It is a necessary element of the cooking surface of the range. This valve makes sure that the user can get the required heat to perform various cooking operations.
Manufacturer:
Dimensions
- Length: 10.795 cm
- Width: 3.81 cm
- Height: 2.54 cm
- Weight: 0.181 kg
Product Notes
- Burner Gas Valve,
- [ 1/4" Mpt X 7/16" Cct ] [ Rotation Off/On] [Stem
- Position Down] [Stem Size .240" ] [Ctr Inlet To End Of
- Stem 3" ] [ Angle - 90] Stem 2-1/8" Long.
- Does Not Come W/Hood Orifice,
- Does Not Come With 7/16" Nut # 26-1372, Or
- 7/16" Ferrule # 26-1378.
- Vulcan Range 872, 7845, 7845A, 7860, 7860A,7872, 7872A,
- M872, M7845, M7860, M7872, Sg7845A, Sg7860A, Sg7872A.
- Series: Gh, H.
- Wolf
