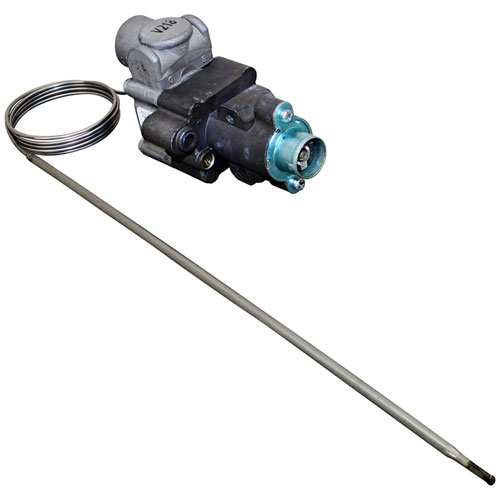

Southbend B940000201 Range Thermostat BJWA W/3/16" X 12" Blub 36" CAP

SKU: B940000201 3-B940000201 Brand:
Southbend
Availability:
Out of Stock
(0)
£406.06 Price reduced from £791.54
Save £385.48
Have a Question? +44 2921680023

Specifications:

  • Viewed From Rear:See Addl Image "Outlet Positions"
  • Temp Low-150-500, Bulb 3/16" X 12", Cap 36", Out 7/16" Cct
  • "C" Rear, Rotation 90 Cw
  • For 300 & 400 Series Use Dial # 22-1381 W/ 1-3/8"
  • Stem. Southbend Oven Series: 400 After 10/97. Series: 300
  • 1/88 & After. (Units Prior To 1/88 Use Type Bjfma T'Stat
  • # 46-1048 W/[Pilot Fitting )
  • Dial To Use # 22-1210 Off-Low-250-500
  • ***461285 Is Thermostat Only.
  • If Southbend B94-00002-01 Kit Is Needed, Use Ap# 8013586.
  • If Southbend B94-00001-01 Kit Is Needed, Use Ap# 8013587
  • ***

Description

The Southbend B940000201 Range Thermostat BJWA with 3/16" x 12" bulb and 36" capillary is a temperature control part that can fit the compatible in commercial appliances. It operates by detecting the heat using the bulb and sends the temperature variation using the capillary to trigger the internal control mechanism. The bulb is placed in the cooking cavity as the thermostat body is fixed behind the control panel. It controls heating cycles to control the desired operating temperature in the process of cooking and falls within the range of the system.

Dimensions:

  • Weight: 0.46 kgs
  • Length: 31.75 cm
  • Height: 5.08 cm
  • Width: 17.02 cm

SOUTHBEND:

B94-00002-01 B9400002-01
