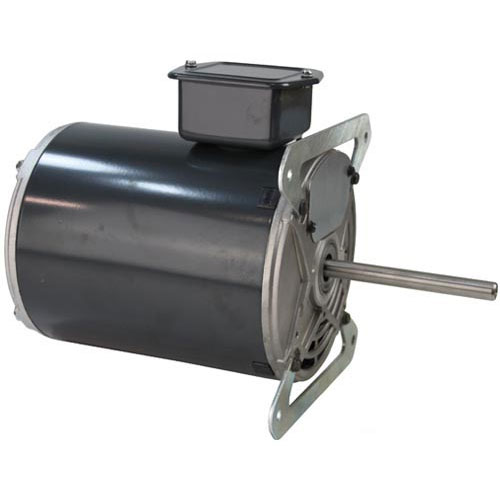

Southbend 1188523 Oven Motor W/ 2 Flats 1PH 7.2/4.5AMP CW

SKU: 1188523 3-1188523 Brand:
Southbend
Availability:
Out of Stock
(0)
£617.94 Price reduced from £774.36
Save £156.42
Have a Question? +44 2921680023

Specifications:

  • [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
  • [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
  • Frame 56Z, 2 Speed.
  • [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
  • White Common
  • Black Power To Fan Switch - Hi
  • Red Power To Fan Switch - Lo
  • Blue/Purple Or Brown/Brown To Centrifugal Switch.
  • If Oven Does Not Have Centrifugal Switch Then
  • Wire Together W/ Wire Nut.
  • If Only Using For One Speed, Then Wire Nut Red Wire.
  • Southbend
  • Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs

Description

The Southbend 1188523 Convection Oven Motor is a heavy-duty, two-speed blower motor. It is 115V power with 0.5/0.25 HP and 7.2/4.5 amps that provide proper air circulation and proper cooking. It has a 1/2” x 4-1/2” shaft with two flats for easy installation and turns in a clockwise direction from the rear. It has dual speed control for the flexibility of cooking applications, improving heat convection and shortening cooking time. This component has the function of keeping constant temperatures, which without a doubt enhances the quality of food as well as of economical and strict working procedures in the professional kitchen.

Dimensions:

  • Weight: 10.43 kgs
  • Length: 26.42 cm
  • Height: 17.78 cm
  • Width: 20.7 cm

SOUTHBEND:

1175567 1175571 1177452 1194780 OS MAKE LIST 4440300 4440367 SOU1175567 SOU1175571 SOU1177452 SOU1188523 SOU4440367
