Manitowoc 7627813 Ice Thickness Probe 4" 3-1/4"

SKU: 7627813 3-7627813 Brand:
Manitowoc
Availability:
Out of Stock
(2)
£95.01 Price reduced from £178.94
Save £83.93
Have a Question? +44 2921680023

Description

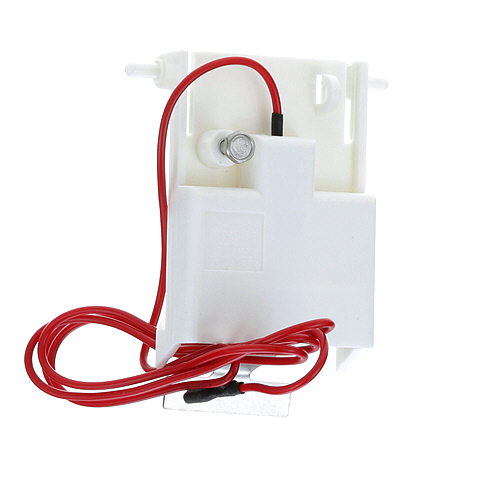

The Manitowoc 7627813 Ice Thickness Probe is a sensor part that is used to detect the commercial foodservice system with the evaporator plate 4" 3-1/4". When the correct depth is achieved, the unit will switch to harvest mode instead of freezing. The probe is installed in the appliance assembly and assists in controlling the size of the cubes, and also aids in maintaining the same output during different operating cycles. It is a component of the internal sensing system that is applied in commercial appliances in food service applications.

Dimensions:

  • Weight: 0.05 kgs

This Part Fits the Following Models

3 models
Manufacturer Name: Manitowoc
Product Number: 7627813
OEM Part Number: 7627813
Product Description: Ice Thickness Probe, 4" 3-1/4" Ovverall;Manitowoc Ice Machine Series: Q, Except Q130,Q210, Q270.;Q Series Ending In P (Prison) & C, Dual C Units.;Series: B, J.
Similar Models:76-2781-3 - Manitowoc
Dimensions:
Length:5in/12.7cm
Width:4.5in/11.43cm
Height:1in/2.54cm
Weight:0.11lbs/49.9g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe UK!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at +44 2921680023 or contact@partsfe.co.uk

MANITOWOC:

76-2781-3 MAN76-2781-3 MAN7627813

Step1: Turn off and unplug the unit to prevent electrical hazards.

Step2: Access the probe area by removing the front or top panel.

Step3: Detach the old probe from its bracket and unplug connections.

Step4: Position the replacement probe correctly against the evaporator.

Step5: Secure it firmly and reconnect all electrical leads.

Step6: Reassemble panels, power on, and check ice formation consistency.
