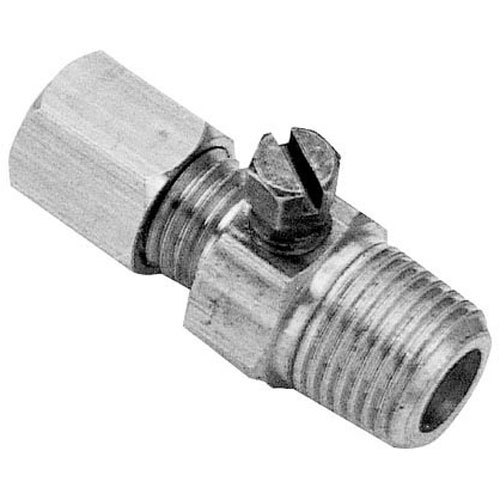

Imperial 1607 Charbroiler Pilot Adjustment Valve1/8" MPT X 3/16" CCT

SKU: 1607 3-1607 Brand:
Imperial
Availability:
Out of Stock
(0)
£7.52
Have a Question? +44 2921680023

Specifications:

  • Pilot Adjustment Valve
  • [ 1/8" Mpt X 3/16" Cct ] ] [Width 1-1/8"],
  • Straight, Adjustable
  • American Range
  • Bakers Pride Broiler Ch10. Series: 50, Gg, Xx.
  • Dynamic Cooking Systems Broiler Cheesemelter, Salamander.
  • Garland Oven 60/40R, Stw286 & Where Applicable.
  • Griddle Series: Gd
  • Imperial Broiler Eba-3223. Series: Gd, Icb, Icma, Isb, Msq.
  • Grill Series: Imga, Itg.
  • Range Series: Icra, Isp-J, Ispa.
  • Wolf Broiler Cmss Cheesemelter, Fshb & Hbss
  • (Old F & Fs-855), Scb.
  • Grill Gg, Stg.

Description

The Imperial 1607 Pilot Adjustment Valve is a control element that is applied to adjust the pilot gas flow in commercial charbroilers. It is placed between the gas supply and the pilot burner to enable a fine control of the pilot flame to enable ignition and stable operation of the burner. The valve has a 1/8 inch male pipe thread inlet and a 3/16 inch compression outlet and can be used with standard gas line configurations. In regular application, it ensures that there is consistent heat regulation and better start-up operation in the charbroiler gas system.

Dimensions:

  • Weight: 0.05 kgs
  • Length: 1.27 cm
  • Height: 3.81 cm
  • Width: 1.91 cm

This Part Fits the Following Models

100 models
Imperial EBA SERIES Imperial GD SERIES Imperial IAB-24 Imperial IAB-30 Imperial IAB-36 Imperial IAB-48 Imperial IAB-60 Imperial IAB-72 Imperial IABC-48 Imperial IABFR Imperial IABR-48 Imperial IABS-48 Imperial ICB-4827 Imperial ICB-4836 Imperial ICMA-24 Imperial ICMA-36 Imperial ICMA-48 Imperial ICMA-60 Imperial ICMA-72 Imperial ICMA-84 Imperial ICRA-1 Imperial ICRA-2 Imperial ICRA-3 Imperial ICRA-4 Imperial ICRA-5 Imperial IDR-37 Imperial IDR-49 Imperial IDR-61 Imperial IHEG-72-J-CS-LP Imperial IHEG-72-J-CS-NAT Imperial IHEG-72-J-LP Imperial IHEG-72-J-NAT Imperial IMGA-2428 Imperial IMGA-3628 Imperial IMGA-4828 Imperial IMGA-6028 Imperial IMGA-7228 Imperial IR SERIES Imperial IR-24 Imperial IR-36 Imperial IR-48 Imperial IR-60 Imperial IR-72 Imperial IRB-30 Imperial IRB-48 Imperial IR-C/IHR-C Imperial ISAE-24 Imperial ISAE-36 Imperial ISAE-48 Imperial ISAE-60 Imperial ISAE-72 Imperial ISB-24 Imperial ISB-36 Imperial ISCE-24 Imperial ISCE-36 Imperial ISCE-48 Imperial ISCE-60 Imperial ISCE-72 Imperial ISPA-18 Imperial ISPA-18-2 Imperial ISPA-18W Imperial ISPA-18W-2 Imperial ISP-J-SP Imperial ISP-J-SP2 Imperial ISP-J-W13 Imperial ISP-J-W16 Imperial ITG-24 Imperial ITG-36 Imperial ITG-48 Imperial ITG-60 Imperial ITG-72 Imperial ITGA-24 Imperial ITGA-36 Imperial ITGA-48 Imperial ITGA-60 Imperial ITGA-72 Imperial ITY-24 Imperial ITY-36 Imperial ITY-48 Imperial ITY-60 Imperial MSQ-30 Imperial MSQ-36 Imperial MSQ-48 Imperial MSQ-60 American Range ARPC-18 American Range ARSB American Range ARSP American Range ARSP-18-2 American Range SPSH-18 APW GGT-18H APW GGT-18I APW GGT-48H APW GHP-H APW GHP-W Bakers Pride 50 SERIES Bakers Pride BPV Bakers Pride CH Bakers Pride CH SERIES Bakers Pride CH-10 Bakers Pride CH-12
Showing of 100.0

AMERICAN RANGE:

10436 A29302 AMRA29302

ANETS:

ANEP8901-79 P8901-79

APW WYOTT:

2065614

BAKERS PRIDE:

2V-R3021A BKPR3021A R3021A R3021X

DUKE:

3505 3505-2 DUK3505 DUK3505-2

DYNAMIC COOKING SYSTEMS:

13029-2 DCS13029-2

GARLAND:

1086597 1086599 1150092 227199 GL1086597

HOBART:

00-404738-00002 104738-2 19189 404738-00002 404738-2 719189

IMPERIAL:

IMP1607

ROYAL RANGE:

1002 1120

VULCAN HART:

00-404738-00002 00-719189 104738-2 19189 404738-00002 404738-2 719189 VH404738-2
