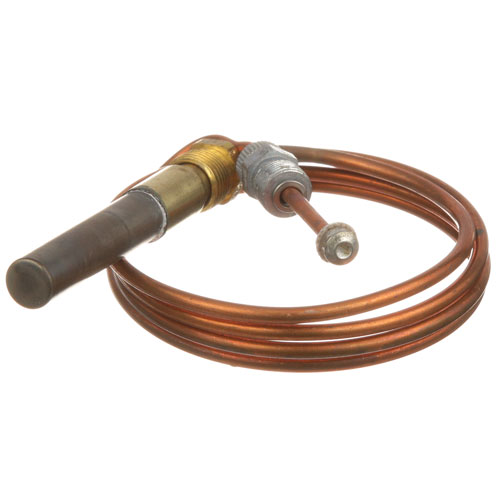

Garland F810-0617 Thermopile 36" 250-750mV

SKU: F810-0617 3-F810-0617 Brand:
Garland
Availability:
Out of Stock
(0)
£40.60 Price reduced from £52.72
Save £12.12
Have a Question? +44 2921680023

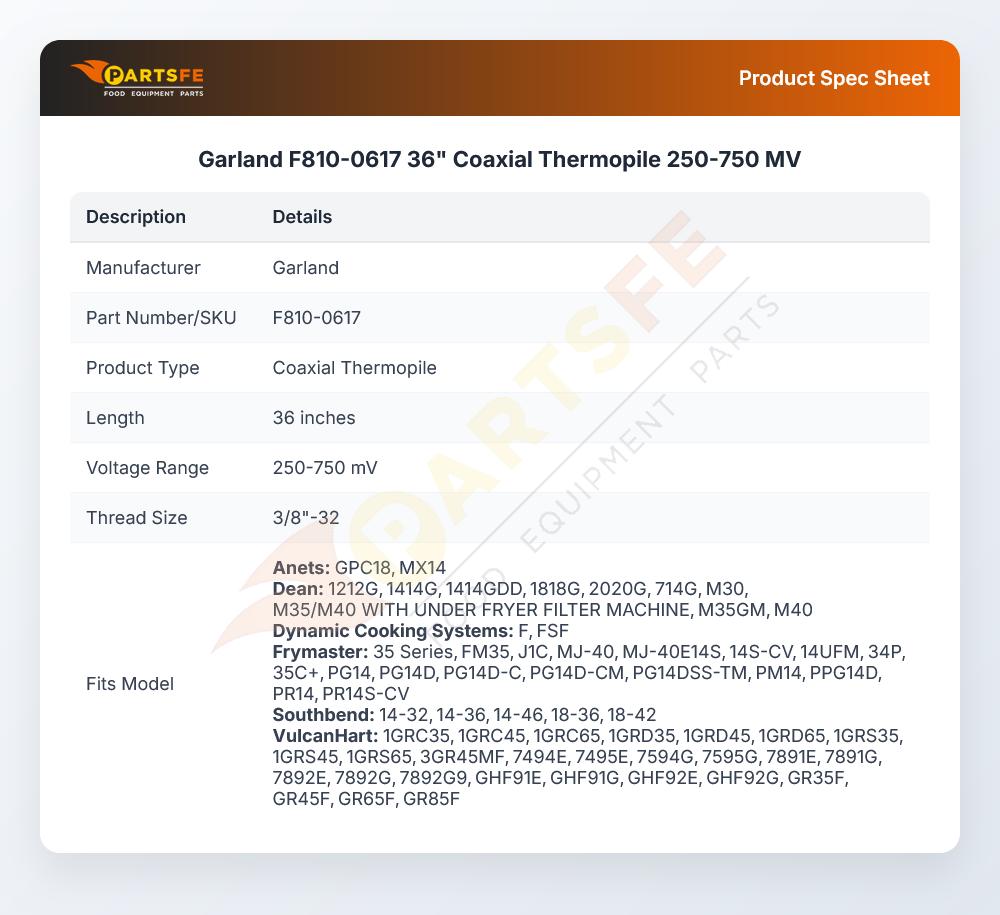

Specifications:

  • 36" Coaxial Thermopile, 250-750 Mv
  • Coaxial Thermopile Threads = 3/8"-32.
  • Robertshaw 1951-53F
  • Vulcan 1Grc35, 1Grc45, 1Grc65, 1Grd45, 1Grd65, 1Grs35,
  • 1Grs45, 1Grs65, Gr35F, Gr45F, Gr65F, Gr85F, Grc35F, Grc45F,
  • Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
  • Grs45F, Grs65F, Grs85F
  • Wolf Fryer Wtf-42, Ss-Wtf-42
  • Grill Tmm (36, 37, 38)

Description

The Garland F810-0617 Thermopile 36" 250-750 mV is an electrical component that is a temperature sensor that produces a millivolt signal when a pilot flame or burner heats the system. This product consists of a series of thermocouple junctions connected to give an electrical output that is proportional to the thermal input it detects, and supplies this output to controls and gas valves in normal operation. It is applied in professional ranges, ovens, and broilers, where there is a need to have continuous flame sensing in order to regulate fuel safely.

Dimensions:

  • Weight: 0.09 kgs
  • Length: 9.21 cm
  • Height: 2.86 cm
  • Width: 6.99 cm

This Part Fits the Following Models

100 models
Anets GPC18 Anets MX14 Dean 1212G Dean 1414G Dean 1414GDD Dean 1818G Dean 2020G Dean 714G Dean M30 Dean M35/M40 WITH UNDER FRYER FILTER MACHINE Dean M35GM Dean M40 Dynamic Cooking Systems F Dynamic Cooking Systems FSF Frymaster 35 Series Frymaster FM35 Frymaster J1C Frymaster MJ35 Frymaster MJ-40 Frymaster MJ-40E Frymaster MJ-41 Frymaster MJ-41E Frymaster MJCF Frymaster MJCFE Frymaster MJCFESD Pitco 12 Pitco 12C Pitco 12CSS Pitco 14 Pitco 14B-C Pitco 14C+S Pitco 14CBU-CV Pitco 14R Pitco 14R-CV Pitco 14RS-HHQ Pitco 14S Pitco 14S-CV Pitco 14UFM Pitco 14UFM WITH UNDER FRYER FILTER MACHINE Pitco 18 Pitco 18-2WKSUFM Pitco 18S Pitco 18UFM WITH UNDER FRYER FILTER MACHINE Pitco 18WKS Pitco 20F Pitco 24P Pitco 3-14S-C/UFM Pitco 34FF Pitco 34P Pitco 35C+ Pitco 35C+D Pitco 35C+S Pitco 40C+ Pitco 45C Pitco 45C+D Pitco 45C+S Pitco 65C+ Pitco 7 Pitco 7UFM WITH UNDER FRYER FILTER MACHINE Pitco DD24RUFM Pitco F14 Pitco F18 W/BUILT-IN FRY STATION & FILTER PUMP CABINET Pitco PG14 Pitco PG14D Pitco PG14D-C Pitco PG14D-CM Pitco PG14DSS-TM Pitco PM14 Pitco PPG14D Pitco PR14 Pitco PR14S-CV Pitco RS14D Pitco RTG14 Pitco RTG14-CHH Pitco SF14UFM WITH UNDER FRYER FILTER MACHINE Southbend 14-32 Southbend 14-36 Southbend 14-46 Southbend 18-36 Southbend 18-42 Vulcan Hart 1GRC35 Vulcan Hart 1GRC45 Vulcan Hart 1GRC65 Vulcan Hart 1GRD35 Vulcan Hart 1GRD45 Vulcan Hart 1GRD65 Vulcan Hart 1GRS35 Vulcan Hart 1GRS45 Vulcan Hart 1GRS65 Vulcan Hart 3GR45MF Vulcan Hart 7494E Vulcan Hart 7495E Vulcan Hart 7594G Vulcan Hart 7595G Vulcan Hart 7891E Vulcan Hart 7891G Vulcan Hart 7892E Vulcan Hart 7892G Vulcan Hart 7892G9 Vulcan Hart GHF91E
Showing of 100.0

ANETS:

P8905-38

DEAN:

1897 810-0162 8100162

DYNAMIC COOKING SYSTEMS:

13257 DCS13257

FRYMASTER:

1897 810-0162 8100162 FM1897 FM810-0162 FM8100162

GARLAND:

1093418 1292900 1577001 1897 F810-0162 GL1093418 GL1292900 GL1577001 GLF810-0162

HOBART:

00-348358-00001 00-410839-00001 00-711335 110839-1 11335 348358-1 410839-00001 410839-1 711335

KEATING:

002567 2567 H00340H KEA2567 KEAH00340H

PITCO:

P5047541 P5047542 P8905-38 PTP5047541 PTP5047542

SOUTHBEND:

1054300 1056400 SOU1054300 SOU1056400

U-LINE:

1951-536 1951-53F

VULCAN HART:

00-410839-00001 00-711335 110839-1 11335 410839-00001 410839-1 711335 VH110839-1 VH410839-1
