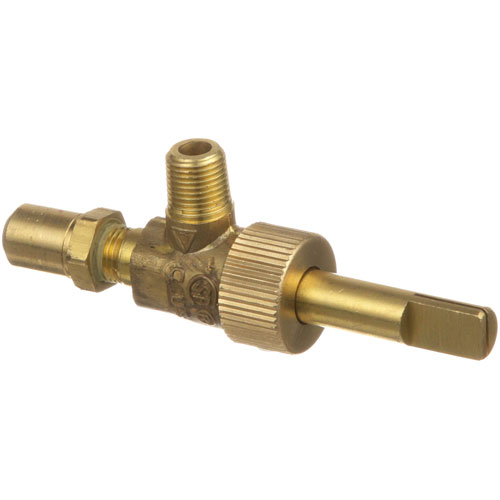

Garland 1087697 Top Burner Valve 1/8" NPT X 3/8-27

SKU: 1087697 3-1087697 Brand:
Garland
Availability:
Out of Stock
(1)
£27.87 Price reduced from £36.20
Save £8.33
Have a Question? +44 2921680023

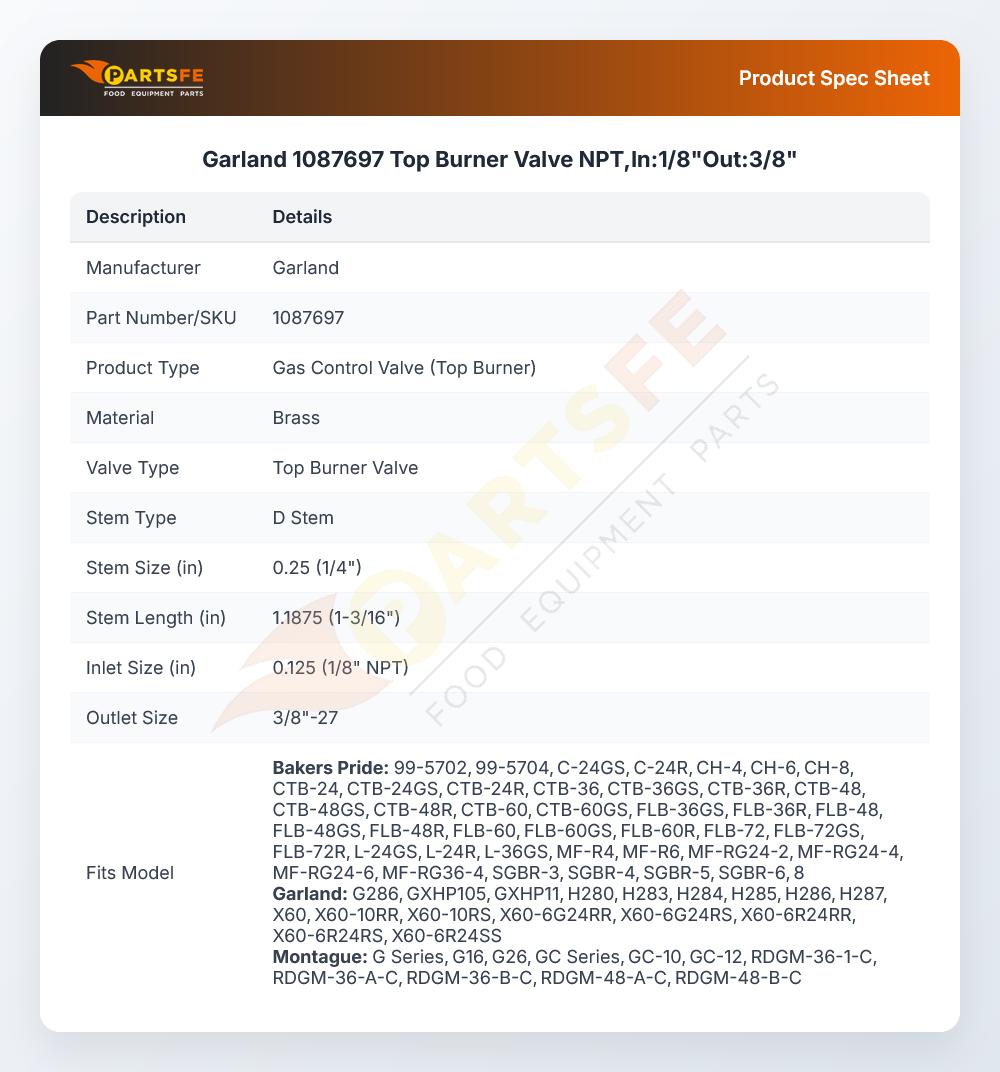

Specifications:

  • ***For Vulcan Hart Use Ap# 8012180***
  • Gas In: 1/8" Npt~
  • Gas Out: 3/8-27. Off/On, #46 Hood Orifice
  • & Point, Adjustable, Brass
  • Not Push To Turn Stem: 1-3/16" Long~
  • D Stem 1/4". Knob
  • #22-1464 Or #22-1164 Depending On Model. Use #26-2937 To
  • Convert Valve To 3/8" Cct On Some Models.
  • Nat Orifice # 26-1117 Is #57, Nat Orifice # 26-1780 Is #56,
  • Lp Orifice # 26-1080 Is #72.
  • Anets Broiler Br34-3
  • Imperial Broiler Series: Eba, Gd, Icb, Icma, Irb, Isb, Msq,
  • Iab(E)(R)(S). Grill Series: Ihr, Imga.
  • Range Series: Icra, Ihpa, Ihr, Ir, Ispa.
  • Roaster Series: Ipr, Ipra.

Description

The Garland 1087697 Top Burner Valve 1/8" NPT x 3/8 -27 is a gas control part for commercial cooking equipment to regulate the flow of gas to the top burner. It is installed in the gas manifold or the valve assembly of the appliance and connects to the gas supply and control linkage to either open or close the flow path when needed. When applied to usage, it allows the regulation of burner output, which allows secure ignition and stable cooking operation. This burner valve is the essential part and it is normally installed when doing maintenance or replacement in a commercial kitchen setup.

Dimensions:

  • Weight: 0.09 kgs
  • Length: 2.22 cm
  • Height: 8.89 cm
  • Width: 4.76 cm

This Part Fits the Following Models

100 models
Garland G286 Garland GXHP105 Garland GXHP11 Garland GXHP21 Garland GXHP22 Garland GXHP33 Garland GXHP42 Garland GXHP63 Garland GXHP84 Garland GXRN48 Garland H/P-280 Garland H280 Garland H283 Garland H284 Garland H285 Garland H286 Garland H287 Garland H288 Garland H289 Garland HP-280 SERIES Garland S-10 Garland S-10-26 Garland S-10-2626 Garland S-10-2626CP Garland S-10-26CP Garland S-10-26CP26CP Garland S-24BG-2626CP Garland S-4 Garland S-4-20 Garland S-6 Garland S-6-24BG-26 Garland S-6-24BG-2626 Garland S-6-24BG-2626CP Garland S-6-24BG-26CP Garland S-6-24BG-26CP26CP Garland S-6-26 Garland S-6-26CP Garland SX-10-26 Garland SX-10-2626 Garland SX-1HT-4 Garland SX-1HT-4-26 Garland SX-24G-2 Garland SX-24G-2-26 Garland SX-24G-6-26 Garland SX-24G-6-2626 Garland SX-4 Garland SX-4-20 Garland SX-6 Garland SX-6-24BG-26 Garland SX-6-24BG-2626 Garland SX-6-26 Garland X24 Garland X24-4L Garland X24-4S Garland X36 Garland X36-2G24R Garland X36-2G24S Garland X36-6R Garland X36-6S Garland X60 Garland X60-10RR Garland X60-10RS Garland X60-6G24RR Garland X60-6G24RS Garland X60-6R24RR Garland X60-6R24RS Garland X60-6R24SS Bakers Pride 99-5702 Bakers Pride 99-5704 Bakers Pride C-24GS Bakers Pride C-24R Bakers Pride C-30GS Bakers Pride C-30R Bakers Pride C-36GS Bakers Pride C-36R Bakers Pride C-48GS Bakers Pride C-48R Bakers Pride C-60GS Bakers Pride C-60R Bakers Pride C-72GS Bakers Pride C-72R Bakers Pride C-84GS Bakers Pride C-84R Bakers Pride CBBQ-30S Bakers Pride CBBQ-60S Bakers Pride CH-10 Bakers Pride CH-12 Bakers Pride CH-14 Bakers Pride CH-16 Bakers Pride CH-18 Bakers Pride CH-20 Bakers Pride CH-22 Bakers Pride CH-4 Bakers Pride CH-6 Bakers Pride CH-8 Bakers Pride CTB-24 Bakers Pride CTB-24GS Bakers Pride CTB-24R Bakers Pride CTB-36 Bakers Pride CTB-36GS
Showing of 100.0

ANETS:

P8900-27

BAKERS PRIDE:

R3032A R3032X

GARLAND:

1086588 227006 9005596 9005597 9005599 G4859-47A G4859-57F

MARSAL AND SONS:

V-107

MONTAGUE:

#34B 01005-7 01006-5 02403-1 1005-7 1006-5 14608-0 2403-1 34A 34B R35

PITCO:

P8900-27

RANDELL:

DRB-11 GB-07 RB-11 RDGM-08 RDHP-08 RDHP-8 RDHP-E-C-08 RDLR-10 SUHP-13 SUHP-E-C-13 TB-11 TB-11-A TB-11A TB-3-11 TB3-11

RANKIN DELUX:

DRB-11 GB-07 RB-11 RDGM-08 RDHP-08 RDHP-8 RDHP-E-C-08 RDLR-10 SUHP-13 SUHP-E-C-13 TB-11 TB-11-A TB-11A TB-3-11 TB3-11
