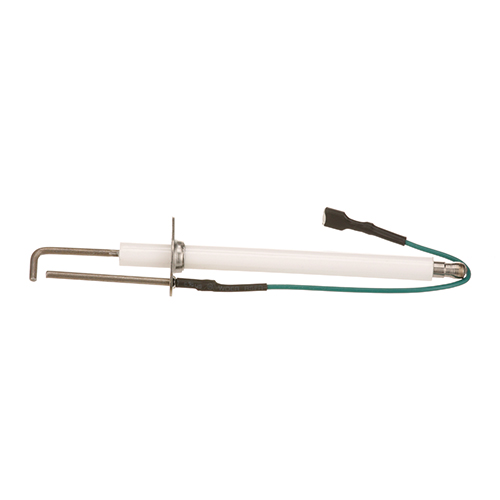

Duke 175536 Spark Igniter PSE-DK4

SKU: 175536 3-175536 Brand:
Duke
Availability:
Out of Stock
(2)
£42.45 Price reduced from £50.50
Save £8.05
Have a Question? +44 2921680023

Specifications:

  • Igniter W/ Wire Lead
  • Duke Broiler Fbb

Description

The Duke 175536 Ignitor Spark PSE-DK4 is an electric ignition component in commercial gas-fired appliances to produce what is needed to start the flame. It is installed in the ignition assembly of the appliance and generates controlled electrical discharges, which cause the gas to burn in the burner ports when the system requires heat. This ignitor is connected to the control module and gas valve to provide the delivery of the spark at the right time during start-up and cycling. It is there to supports in accurate ignition and reduce failed light-off. It is normally installed in commercial heating equipment when replacing it.

Dimensions:

  • Weight: 0.05 kgs
  • Length: 21.59 cm
  • Height: 2.54 cm
  • Width: 2.54 cm

DUKE:

DUK175536

FRANKLIN CHEF:

620392

Step1: Turn off the appliance and disconnect power or gas supply.

Step2: Remove the existing igniter carefully to avoid breaking it.

Step3: Connect the wire lead to the appropriate terminal on the new igniter.

Step4: Position the igniter in the burner area securely.

Step5: Tighten the mounting screws or clips.

Step6: Restore power or gas and test ignition for proper operation.

Customer Reviews

5 Based on 2 reviews
5 ★
2
4 ★
0
3 ★
0
2 ★
0
1 ★
0
2 reviews
  • Flame Ignition
    Trevor —

    Swapped damaged part, gas burner lights with steady spark.

  • Great product
    Brenda —

    This Duke Igniter with Wire Lead worked well on my stove. Easy to install and has made cooking easy again.
